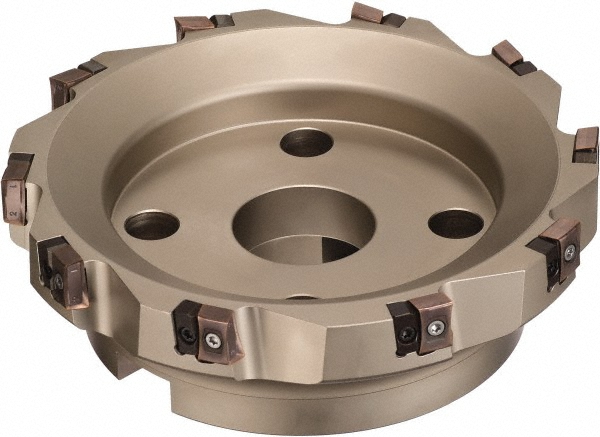

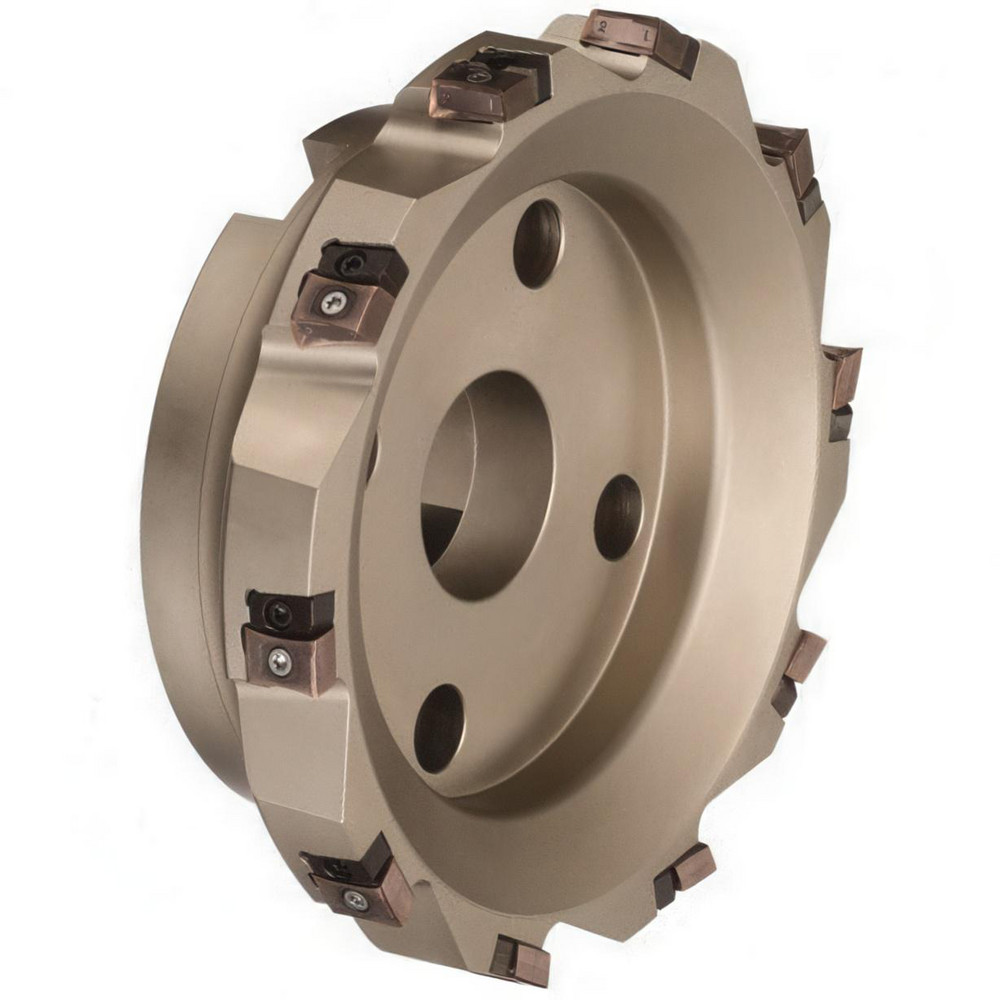

Takes 6 Inserts, 0° Lead Angle, 2.4803" High, LNMX17 Insert Style, Series PWS
| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
|---|---|
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | LNMX17 |
| Cutter Style | PWS |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Rake | Negative |
| Series | PWS |
| Overall Height (Decimal Inch) | 2.4803 |
| Keyway Width (mm) | 12.70 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M |
| UNSPSC Code | 27112803 |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 43538412 |
