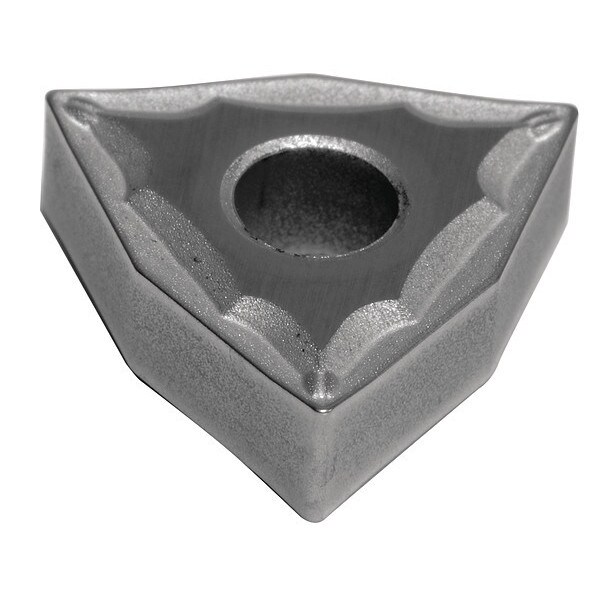

3/8 in, WNMG, 1/32 in
| Insert Style | WNMG |
|---|---|
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | 13 deg |
| ISO Number | WNMG060408N-SU |
| Cutting Direction | Neutral |
| Through Hole Inside Dia. | 0.15 in |
| Finish - Machining | AlTiSiN |
| Primary Material Application ISO Code | S01 - S20 |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| ANSI Code | WNMG332ESU |
| Primary Material Application | Titanium, Nickel |
| Chip-Breaker Code | ESU |
| Manufacturer Grade | AC5015S |
| Cutting Application | Turning |
| Shape | Trigon |
| Number of Cutting Edges | 6 |
| Insert Holding Type | Straight Hole |
| Features | Excellent Wear Resistance |
| Coating Process | PVD |
| Included Angle | 80 Degrees |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 deg |
| Thickness | 3 |
| Package Quantity | 1 |
