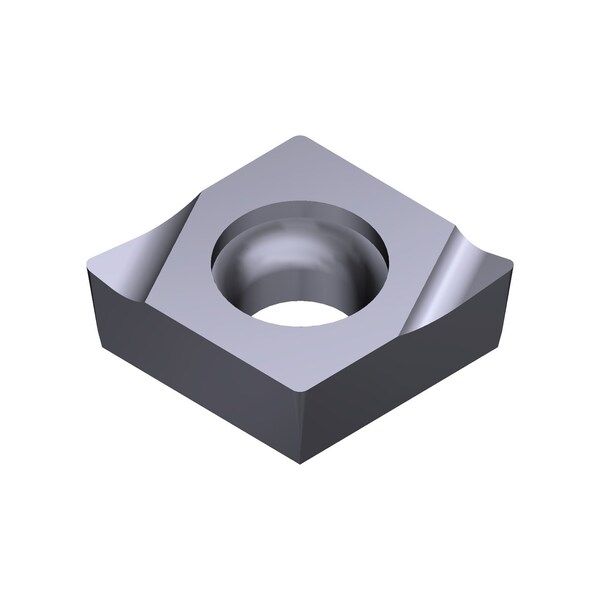

CCGT04 LFY Grade AC5025S Carbide Turning Insert
| Insert Style | CCGT |
|---|---|
| Inscribed Circle | 0.1693 in |
| Chip-Breaker | LFY |
| Insert Material | Carbide |
| Insert Application | S10, S15, S20 |
| Rake | Positive |
| Workpiece Material | Alloy |
| Insert Thickness | 0.0709 in |
| Nose Radius | 0.0039 in |
| Relief Angle | 7 Degree |
| Coating | Absotech |
| Mounting Hole Dia. | 2.3 mm |
| Tolerance Class | G |
| Corner Angle | 80 |
| Cutting Edge Length | 0.1957 in |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| Package Quantity | 1 |
