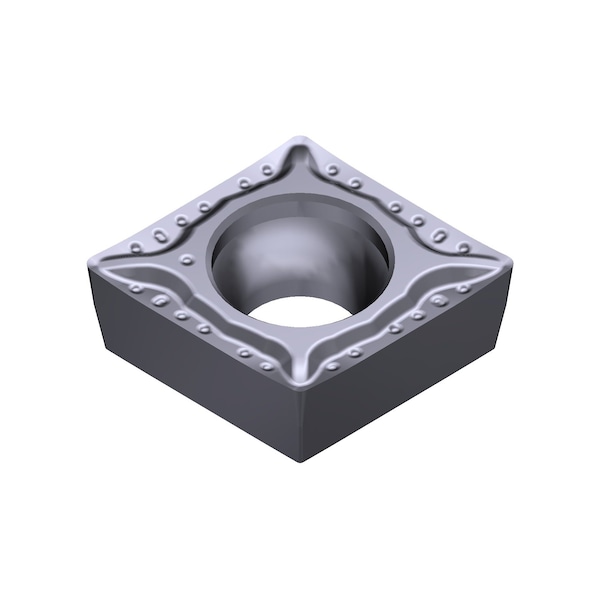

CCGT32.52 MESI Grade AC5025S Carbide Turning Insert
| Insert Style | CCGT |
|---|---|
| Inscribed Circle | 3/8 in |
| Chip-Breaker | MESI |
| Insert Material | Carbide |
| Insert Application | S10, S15, S20 |
| Rake | Positive |
| Nose Radius | 0.0315 in |
| Workpiece Material | Alloy |
| Coating | Absotech |
| Relief Angle | 7 Degree |
| Series | AC5000S |
| Corner Angle | 80 |
| Cutting Edge Length | 0.3819 in |
| Tolerance Class | G |
| Insert Holding Method | Screw-On |
| Package Quantity | 1 |
