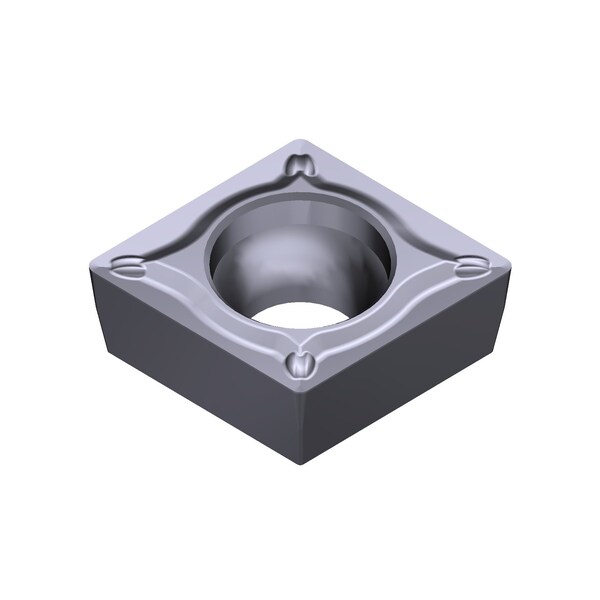

CCMT21.50.5ESU Grade AC5005S Carbide Turning Insert
| Insert Style | CCMT |
|---|---|
| Inscribed Circle | 1/4 in |
| Chip-Breaker | ESU |
| Insert Material | Carbide |
| Insert Application | S05 |
| Rake | Positive |
| Mounting Hole Dia. | 2.8 mm |
| Nose Radius | 0.0079 in |
| Insert Thickness | 0.0937 in |
| Coating | Absotech |
| Workpiece Material | Alloy |
| Relief Angle | 7 Degree |
| Series | AC5000S |
| Corner Angle | 80 |
| Tolerance Class | M |
| Insert Holding Method | Screw-On |
| Cutting Edge Length | 0.252 in |
| Package Quantity | 1 |
