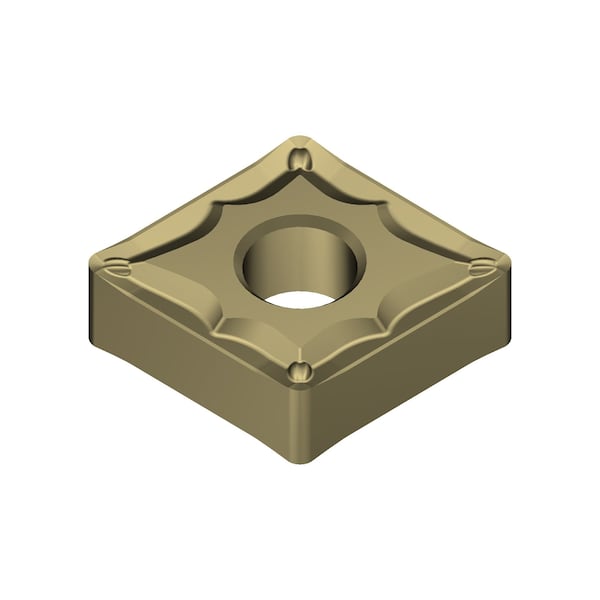

CNMG32.51ESU Grade AC8020P Carbide Turning Insert
| Insert Style | CNMG |
|---|---|
| Inscribed Circle | 3/8 in |
| Chip-Breaker | ESU |
| Insert Material | Carbide |
| Insert Application | P20 |
| Rake | Negative |
| Nose Radius | 0.0157 in |
| Coating | Absotech |
| Workpiece Material | Steel |
| Insert Thickness | 0.1563 in |
| Mounting Hole Dia. | 3.81 mm |
| Relief Angle | 0 Degree |
| Insert Holding Method | Clamp, Pin |
| Corner Angle | 80 |
| Series | AC8000P |
| Tolerance Class | M |
| Cutting Edge Length | 0.3819 in |
| Package Quantity | 1 |
