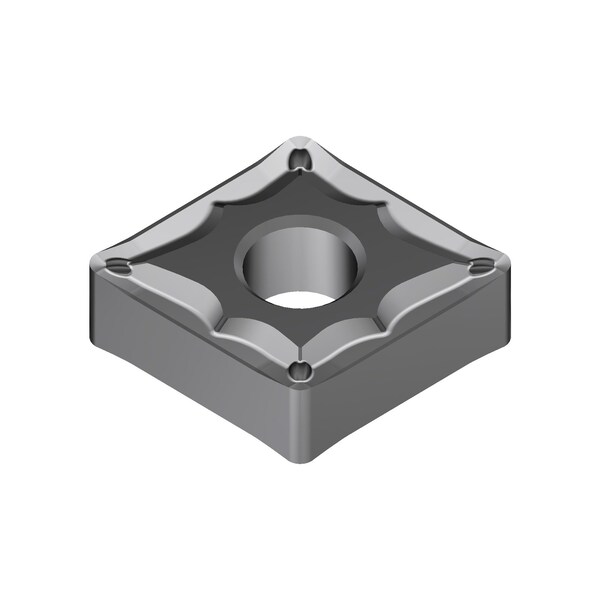

CNMG432ESU Grade AC6020M Carbide Turning Insert
| Insert Style | CNMG |
|---|---|
| Inscribed Circle | 1/2 in |
| Chip-Breaker | ESU |
| Insert Material | Carbide |
| Insert Application | M25, M15, M20 |
| Rake | Negative |
| Workpiece Material | Stainless Steel |
| Insert Thickness | 0.1874 in |
| Coating | Absotech |
| Mounting Hole Dia. | 5.16 mm |
| Relief Angle | 0 Degree |
| Nose Radius | 0.0315 in |
| Insert Holding Method | Clamp, Pin |
| Series | AC6000M |
| Cutting Edge Length | 0.5079 in |
| Tolerance Class | M |
| Corner Angle | 80 |
| Package Quantity | 1 |
