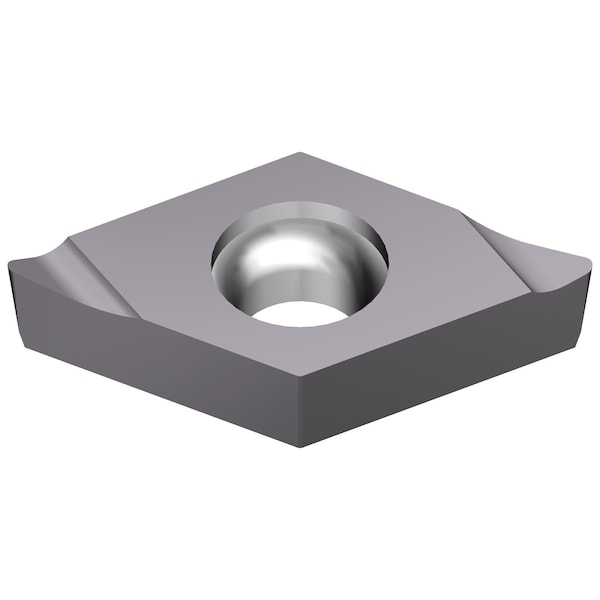

DCGT21.5.001RFY Grade AC1030U Carbide Turning Insert
| Insert Style | DCGT |
|---|---|
| Inscribed Circle | 1/4 in |
| Chip-Breaker | RFY |
| Insert Material | Carbide |
| Insert Application | M10, P10 |
| Rake | Positive |
| Workpiece Material | Small Machining, Steel, Stainless Steel |
| Insert Thickness | 0.0937 in |
| Coating | Absotech |
| Mounting Hole Dia. | 2.8 mm |
| Relief Angle | 7 Degree |
| Nose Radius | 0.0012 in |
| Insert Holding Method | Screw-On |
| Corner Angle | 55 |
| Tolerance Class | G |
| Series | AC1030U |
| Cutting Edge Length | 0.3031 in |
| Package Quantity | 1 |
