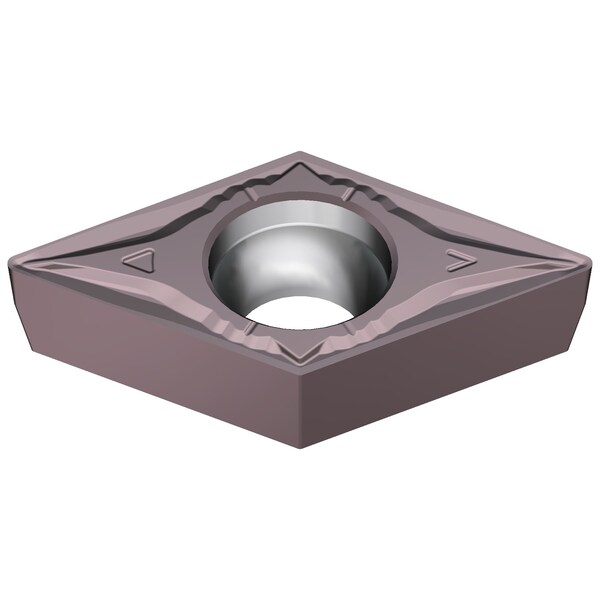

DCMT21.51EGU Grade AC6040M Carbide Turning Insert
| Insert Style | DCMT |
|---|---|
| Inscribed Circle | 1/4 in |
| Chip-Breaker | EGU |
| Insert Material | Carbide |
| Insert Application | M30, M40 |
| Rake | Positive |
| Mounting Hole Dia. | 2.8 mm |
| Nose Radius | 0.0157 in |
| Workpiece Material | Stainless Steel |
| Insert Thickness | 0.0937 in |
| Coating | Absotech |
| Relief Angle | 7 Degree |
| Cutting Edge Length | 0.3031 in |
| Insert Holding Method | Screw-On |
| Tolerance Class | M |
| Series | AC6000M |
| Corner Angle | 55 |
| Package Quantity | 1 |
