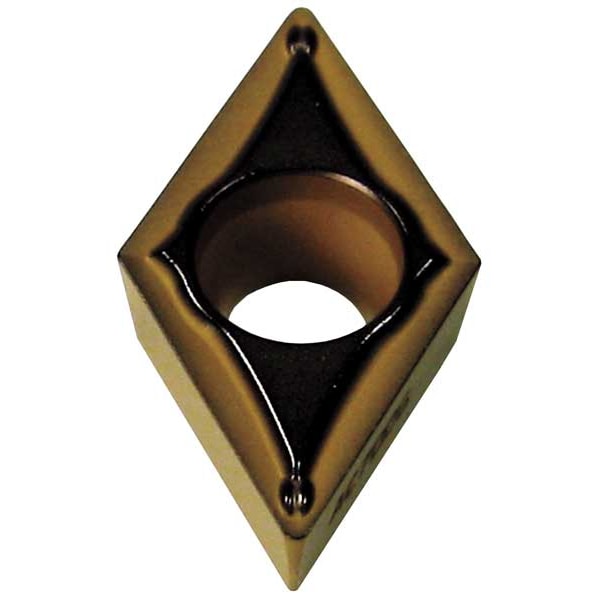

Diamond Turning Insert, Diamond, 1/2 in, DNGG, 0.0079 in, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNGG |
| Inscribed Circle | 4 |
| Insert Size | 430.5 |
| Chip-Breaker | Yes |
| Grade | AC520U |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | DNGG150402NSU |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.203 |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Coating | PVD, AlCrN, Super ZX TiAlN |
| ANSI Number | DNGG150401.5ESU-AC520U |
| Cast Iron (K) Compatibility | Yes |
| Nose Radius | 0.008 in |
| Hardened (H) Compatibility | No |
| For Use With | DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | Yes |
| No. of Edges | 4 |
| Insert Thickness | 3/16 in |
| Relief Angle | 0 Degrees |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Super Alloy (S) |
| Mounting Style | Clamp |
| Primary Material Application ISO Code | P, M, S |
| Insert Holding Type | Straight Hole |
| Shape | Rhombic |
| Thickness | 3 |
| Cutting Application | Turning |
| Material - Machining | Carbide |
| Coating Process | PVD |
| Finish - Machining | TiAlN+AlCrN |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| ANSI Code | DNGG430.5ESU |
| Measurement System | Fractional Inch |
| Included Angle | 55 Degrees |
| Features | Excellent Fracture Resistance |
| Manufacturer Grade | AC520U |
| Chip-Breaker Code | ESU |
| Number of Cutting Edges | 4 |
| Chip-Breaker Style | Double |
| Clearance Angle | 0 deg |
| Material | Carbide |
| Application | Finishing |
| Style | DNGG |
| Package Quantity | 1 |
