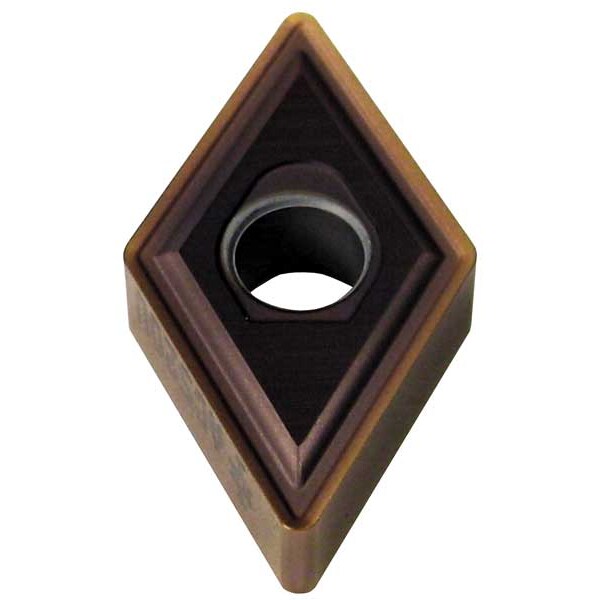

Diamond Turning Insert, Diamond, 1/2 in, DNMG, 1/32 in, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | AC630M |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | DNMG150408NEX |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 4 |
| Nose Radius | 0.0312 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M) |
| Mounting Hole Dia. | 0.203 |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| Mounting Style | Clamp |
| Insert Thickness | 3/16 in |
| For Use With | DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Relief Angle | 0 Degrees |
| ANSI Number | DNMG432EEX-AC630M |
| Non Ferrous (N) Compatibility | No |
| Cutting Application | Turning |
| Primary Material Application | Stainless Steel, Steel |
| ANSI Code | DNMG432EEX |
| Measurement System | Fractional Inch |
| Manufacturer Grade | AC630M |
| Chip-Breaker Code | EEX |
| Material - Machining | Carbide |
| Shape | Rhombic |
| Primary Material Application ISO Code | P, M |
| Chip-Breaker Style | Double |
| Number of Cutting Edges | 4 |
| Included Angle | 55 Degrees |
| Clearance Angle | 0 deg |
| Thickness | 3 |
| Insert Holding Type | Straight Hole |
| Coating Process | CVD |
| Finish - Machining | Al203+TiCN |
| Material | Carbide |
| Style | DNMG |
| Application | Medium |
| Package Quantity | 1 |
