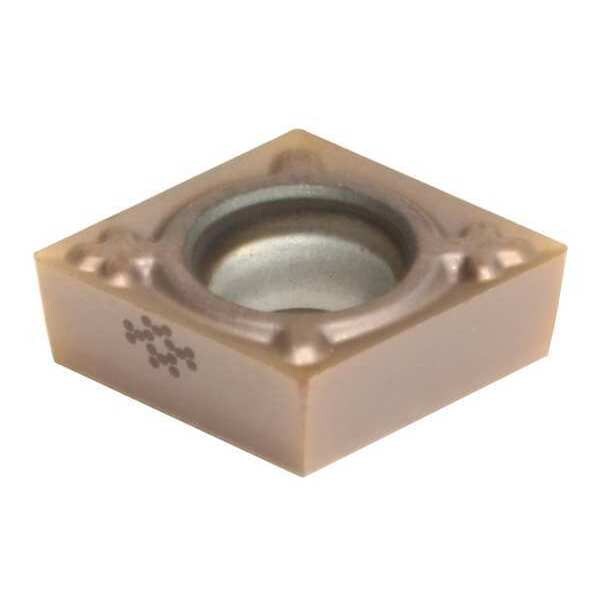

Diamond Turning Insert, Diamond, 2, CCGT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.50.5 |
| Chip-Breaker | Yes |
| Grade | AC530U |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | CCGT060202N-FC |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | Yes |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.11 in |
| Insert Thickness | 0.094 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Super Alloy (S) |
| Coating | CVD |
| Cast Iron (K) Compatibility | Yes |
| Nose Radius | 0.0078 in |
| Steel (P) Compatibility | No |
| ANSI Number | CCGT21.50.5EFC-AC530U |
| No. of Edges | 4 |
| Mounting Style | Screw-On |
| Insert Holding Type | Countersink Hole |
| Coating Process | PVD |
| ANSI Code | CCGT21.50.5EFC |
| Measurement System | Fractional Inch |
| Chip-Breaker Style | Single |
| Clearance Angle | 7 deg |
| Chip-Breaker Code | EFC |
| Thickness | 1.5 |
| Finish - Machining | TiAlN+AlCrN |
| Number of Cutting Edges | 4 |
| Features | Excellent Fracture Resistance |
| Manufacturer Grade | AC530U |
| Shape | Rhombic |
| Included Angle | 80 Degrees |
| Primary Material Application ISO Code | P, M |
| Material - Machining | Carbide |
| Primary Material Application | Stainless Steel, Steel |
| Cutting Application | Turning |
| Material | Carbide |
| Application | Finishing |
| Style | CCGT |
| Package Quantity | 1 |
