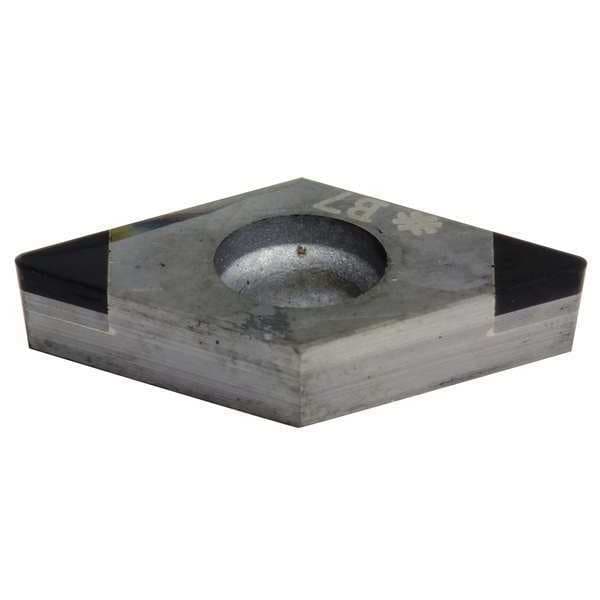

Diamond Turning Insert, Diamond, 2, DCGA, 1, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGA |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | BN7500 |
| Corner Radius | 1 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | 2NU-DCGW070204WG |
| Mounting Hole Dia. | 0.11 in |
| Mounting Style | Screw-On |
| Insert Thickness | 0.094 in |
| ANSI Number | 2NUDCGA21.51WG-BN7500 |
| Nose Radius | 0.0156 in |
| Stainless (M) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Super Alloy (S) |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| No. of Edges | 2 |
| Coating | CVD |
| Steel (P) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | No |
| Depth of Cut | 0.0150 in |
| Wiper Insert | Yes |
| Manufacturer Grade | BN7500 |
| Primary Material Application ISO Code | M, S, K10 |
| Number of Cutting Edges | 2 |
| Shape | Rhombic |
| Finish - Machining | Bright |
| Thickness | 1.5 |
| Measurement System | Fractional Inch |
| Cutting Application | Turning |
| Primary Material Application | Titanium, Nickel, Cast Iron |
| ANSI Code | 2NU-DCGA21.51WG |
| Clearance Angle | 7 deg |
| Insert Holding Type | Straight Hole |
| Included Angle | 55 Degrees |
| Material - Machining | CBN |
| Chip-Breaker Code | WG |
| Material | CBN |
| Application | Finishing |
| Style | DCGA |
| Package Quantity | 1 |
