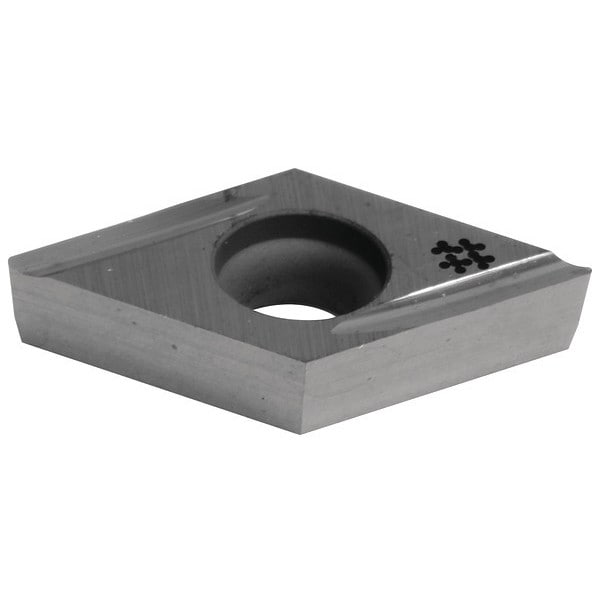

Diamond Turning Insert, Diamond, 2, DCGT, .2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.5 |
| Chip-Breaker | Yes |
| Grade | AC5025S |
| Corner Radius | .2 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | DCGT070201L-FX |
| Cast Iron (K) Compatibility | Yes |
| Coating | PVD |
| For Use With | Toolholders, Boring Bars |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | Yes |
| Insert Thickness | 0.093 in |
| Relief Angle | 7 Degrees |
| Mounting Hole Dia. | 0.11 in |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Nose Radius | 0.003 in |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| No. of Edges | 2 |
| Stainless (M) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Mounting Style | Screw |
| ANSI Number | DCGT21.50LFX |
| Clearance Angle | 7 deg |
| Shape | Rhombic |
| Finish - Machining | AlTiSiN |
| Coating Process | PVD |
| Chip-Breaker Style | Single |
| Insert Holding Type | Countersink Hole |
| Chip-Breaker Code | LFX |
| Features | Excellent Fracture Resistance |
| Included Angle | 55 Degrees |
| Number of Cutting Edges | 2 |
| Measurement System | Fractional Inch |
| Primary Material Application | Titanium, Nickel |
| Primary Material Application ISO Code | S10 - S30 |
| Manufacturer Grade | AC5025S |
| ANSI Code | DCGT21.50LFX |
| Cutting Application | Turning |
| Thickness | 1.5 |
| Material - Machining | Carbide |
| Material | Carbide |
| Package Quantity | 1 |
