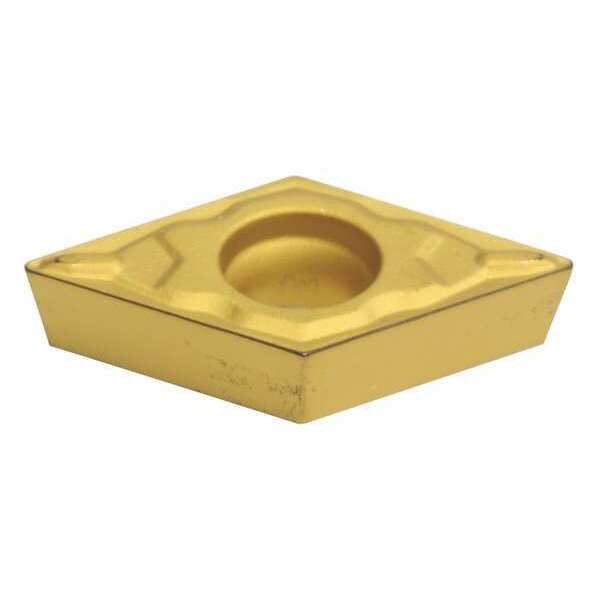

Diamond Turning Insert, Diamond, 2, DCMT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCMT |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | AC810P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | DCMT070204NLU |
| Stainless (M) Compatibility | Yes |
| Cutting Direction | Neutral |
| Insert Thickness | 0.094 in |
| Mounting Style | Screw-On |
| Coating | CVD |
| Nose Radius | 0.0156 in |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| No. of Edges | 2 |
| Cast Iron (K) Compatibility | Yes |
| Mounting Hole Dia. | 0.11 in |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | No |
| ANSI Number | DCMT21.51ELU-AC810P |
| Non Ferrous (N) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Primary Material Application ISO Code | P10 |
| Shape | Rhombic |
| Number of Cutting Edges | 2 |
| Finish - Machining | Al203+TiCN |
| Chip-Breaker Style | Single |
| Included Angle | 55 Degrees |
| ANSI Code | DCMT21.51ELU |
| Coating Process | CVD |
| Insert Holding Type | Countersink Hole |
| Features | Excellent Wear Resistance |
| Chip-Breaker Code | ELU |
| Manufacturer Grade | AC810P |
| Cutting Application | Turning |
| Clearance Angle | 7 deg |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Thickness | 1.5 |
| Material - Machining | Carbide |
| Material | Carbide |
| Style | DCMT |
| Application | Finishing |
| Package Quantity | 1 |
