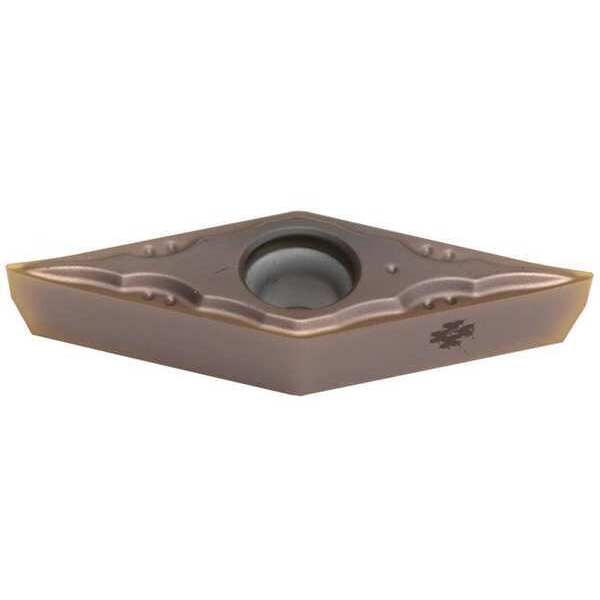

Diamond Turning Insert, Diamond, 2, VCGT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VCGT |
| Inscribed Circle | 2 |
| Insert Size | 221 |
| Chip-Breaker | Yes |
| Grade | AC530U |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | VCGT110304R-FX |
| Stainless (M) Compatibility | Yes |
| Mounting Hole Dia. | 0.134 in |
| For Use With | Toolholders, Boring Bars |
| Mounting Style | Screw-On |
| Hardened (H) Compatibility | No |
| No. of Edges | 2 |
| ANSI Number | VCGT221RFX-AC530U |
| Nose Radius | 0.0156 in |
| Steel (P) Compatibility | No |
| Coating | Uncoated |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Super Alloy (S) |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 1/8 in |
| Chip-Breaker Style | Single |
| Manufacturer Grade | AC530U |
| Number of Cutting Edges | 2 |
| Material - Machining | Carbide |
| Cutting Application | Turning |
| ANSI Code | VCGT221RFX |
| Features | Excellent Fracture Resistance |
| Primary Material Application ISO Code | P, M |
| Shape | Rhombic |
| Included Angle | 35 Degrees |
| Chip-Breaker Code | RFX |
| Clearance Angle | 7 deg |
| Measurement System | Fractional Inch |
| Coating Process | PVD |
| Finish - Machining | TiAlN+AlCrN |
| Primary Material Application | Stainless Steel, Steel |
| Thickness | 2 |
| Insert Holding Type | Countersink Hole |
| Material | Carbide |
| Style | VCGT |
| Application | Finishing |
| Package Quantity | 1 |
