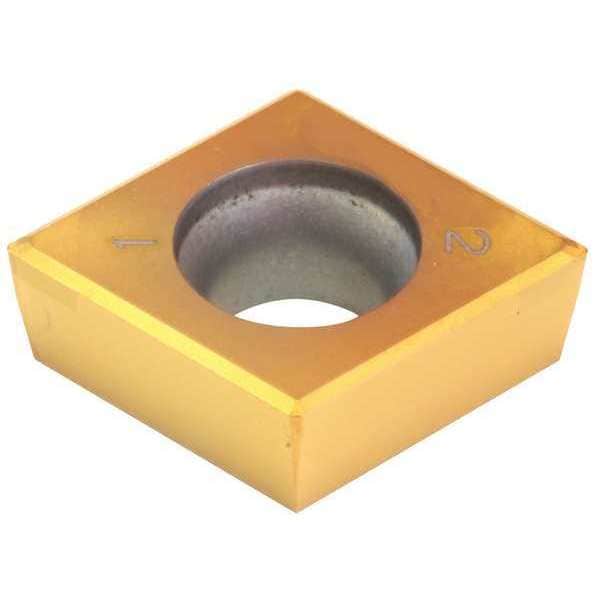

Diamond Turning Insert, Diamond, 3, CCGT, 1, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | BNC2010 |
| Corner Radius | 1 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | 2NC-CCGT09T304LV |
| Nose Radius | 0.0156 in |
| Mounting Hole Dia. | 0.173 in |
| Insert Thickness | 0.156 in |
| Workpiece Compatibility | Hardened (H), Steel (P) |
| Cutting Direction | Neutral |
| For Use With | Toolholders, Boring Bars |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Coating | PVD |
| Mounting Style | Screw-On |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | Yes |
| No. of Edges | 2 |
| ANSI Number | 2NCCCGT32.51LV-BNC2010 |
| Hardened (H) Compatibility | Yes |
| Shape | Rhombic |
| Features | High Wear Resistance |
| Finish - Machining | TiCN |
| ANSI Code | 2NC-CCGT32.51LV |
| Number of Cutting Edges | 2 |
| Clearance Angle | 7 deg |
| Chip-Breaker Code | LV |
| Primary Material Application ISO Code | H |
| Material - Machining | Carbide |
| Chip-Breaker Style | Single |
| Measurement System | Fractional Inch |
| Depth of Cut | 0.0150 in |
| Insert Holding Type | Countersink Hole |
| Primary Material Application | Hardened Steel |
| Manufacturer Grade | BNC2010 |
| Cutting Application | Turning |
| Included Angle | 80 Degrees |
| Thickness | 2.5 |
| Material | CBN |
| Application | Finishing |
| Style | CCGT |
| Package Quantity | 1 |
