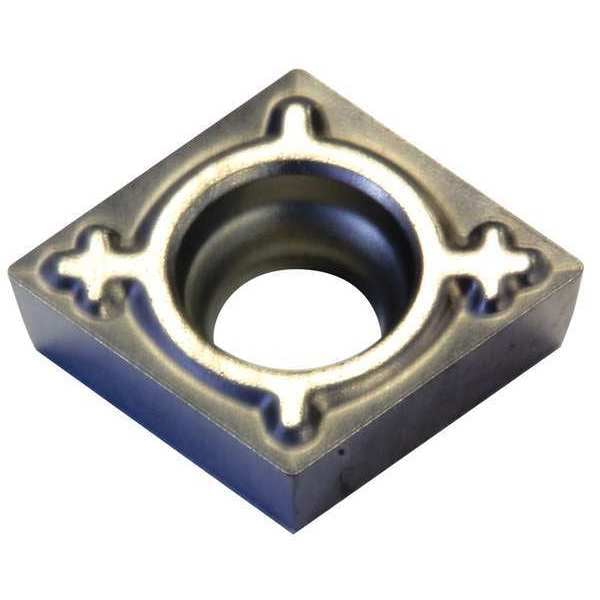

Diamond Turning Insert, Diamond, 3, CCGT, 1, Cermet
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | T1500A |
| Corner Radius | 1 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | CCGT09T304MN-FC |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | No |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 0.173 in |
| Steel (P) Compatibility | Yes |
| Mounting Style | Screw-On |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| ANSI Number | CCGT32.51MEFC-T1500A |
| Nose Radius | 0.0156 in |
| Stainless (M) Compatibility | Yes |
| Cutting Direction | Neutral |
| Coating | CBN |
| Super Alloy (S) Compatibility | No |
| Insert Thickness | 0.156 in |
| Cutting Application | Turning |
| Shape | Rhombic |
| Chip-Breaker Style | Single |
| Primary Material Application | Steel |
| Insert Holding Type | Countersink Hole |
| Measurement System | Fractional Inch |
| Material - Machining | Cermet |
| Primary Material Application ISO Code | P05 - P30 |
| Chip-Breaker Code | MEFC |
| Thickness | 2.5 |
| ANSI Code | CCGT32.51MEFC |
| Number of Cutting Edges | 4 |
| Clearance Angle | 7 deg |
| Features | Excellent Wear Resistance and Fracture Resistance |
| Manufacturer Grade | T1500A |
| Included Angle | 80 Degrees |
| Material | Cermet |
| Style | CCGT |
| Application | Finishing |
| Package Quantity | 1 |
