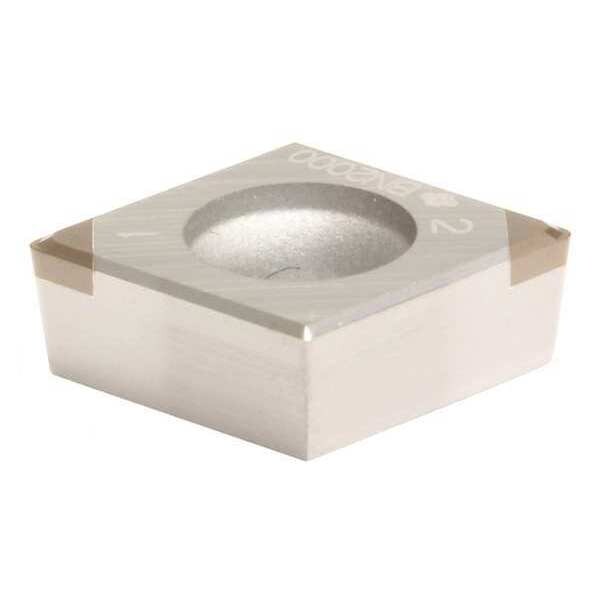

Diamond Turning Insert, Diamond, 3, CCGT, .5, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.5 |
| Chip-Breaker | Yes |
| Grade | BN2000 |
| Corner Radius | .5 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | 2NU-CCGT09T302LV |
| No. of Edges | 2 |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Neutral |
| Insert Thickness | 0.0156 in |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.0078 in |
| ANSI Number | 2NUCCGT32.50.5LV-BN2000 |
| Hardened (H) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Hardened (H), Steel (P), Super Alloy (S) |
| Coating | CVD |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Mounting Hole Dia. | 0.173 in |
| Mounting Style | Screw-On |
| Primary Material Application ISO Code | H10 - H20 |
| Thickness | 2.5 |
| ANSI Code | 2NU-CCGT32.50.5LV |
| Chip-Breaker Code | LV |
| Included Angle | 80 Degrees |
| Manufacturer Grade | BN2000 |
| Material - Machining | CBN |
| Chip-Breaker Style | Single |
| Measurement System | Fractional Inch |
| Insert Holding Type | Countersink Hole |
| Depth of Cut | 0.0150 in |
| Finish - Machining | Bright |
| Clearance Angle | 7 deg |
| Primary Material Application | Hardened Steel |
| Cutting Application | Turning |
| Number of Cutting Edges | 2 |
| Features | Excellent Wear Resistance and Fracture Resistance |
| Wiper Insert | Yes |
| Shape | Rhombic |
| Material | CBN |
| Style | CCGT |
| Application | Finishing |
| Package Quantity | 1 |
