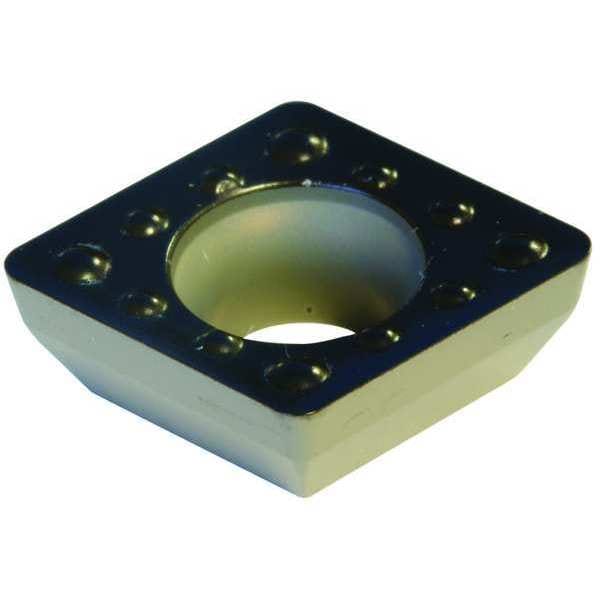

Diamond Turning Insert, Diamond, 3, CPMT, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CPMT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | AC6030M |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | 10 deg |
| ISO Number | CPMT09T308N-US |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.0156 in |
| Cast Iron (K) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 0.156 in |
| Steel (P) Compatibility | No |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw-On |
| ANSI Number | CPMT32.52ENX-AC6030M |
| Workpiece Compatibility | Stainless (M) |
| Mounting Hole Dia. | 0.173 in |
| Cutting Direction | Neutral |
| Coating | CVD |
| No. of Edges | 4 |
| Super Alloy (S) Compatibility | No |
| Primary Material Application ISO Code | M |
| Primary Material Application | Stainless Steel |
| Shape | Rhombic |
| ANSI Code | CPMT32.52ENX |
| Measurement System | Fractional Inch |
| Coating Process | CVD |
| Chip-Breaker Style | Single |
| Number of Cutting Edges | 4 |
| Features | Fracture Resistant |
| Finish - Machining | Absotech |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | ENX |
| Material - Machining | Carbide |
| Thickness | 2.5 |
| Manufacturer Grade | AC6030M |
| Clearance Angle | 11 deg |
| Insert Holding Type | Countersink Hole |
| Cutting Application | Turning |
| Material | Carbide |
| Style | CPMT |
| Application | Roughing |
| Package Quantity | 1 |
