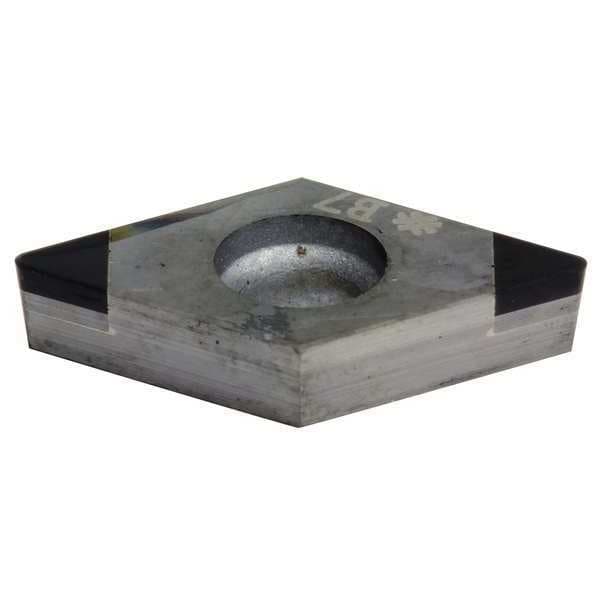

Diamond Turning Insert, Diamond, 3, DCGA, .5, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGA |
| Inscribed Circle | 3 |
| Insert Size | 32.50.5 |
| Chip-Breaker | Yes |
| Grade | BN7500 |
| Corner Radius | .5 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | 2NU-DCGW11T302LS |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Super Alloy (S) |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.0078 in |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.0156 in |
| Cast Iron (K) Compatibility | Yes |
| Coating | Cermet |
| ANSI Number | 2NUDCGA32.50.5LS-BN7500 |
| Mounting Style | Screw-On |
| No. of Edges | 2 |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Mounting Hole Dia. | 0.173 in |
| Thickness | 2.5 |
| Primary Material Application ISO Code | M, S, K10 |
| Measurement System | Fractional Inch |
| Clearance Angle | 7 deg |
| ANSI Code | 2NU-DCGA32.50.5LS |
| Shape | Rhombic |
| Manufacturer Grade | BN7500 |
| Chip-Breaker Code | LS |
| Material - Machining | CBN |
| Primary Material Application | Titanium, Nickel, Cast Iron |
| Depth of Cut | 0.0150 in |
| Insert Holding Type | Straight Hole |
| Included Angle | 55 Degrees |
| Cutting Application | Turning |
| Number of Cutting Edges | 2 |
| Finish - Machining | Bright |
| Material | CBN |
| Style | DCGA |
| Application | Finishing |
| Package Quantity | 1 |
