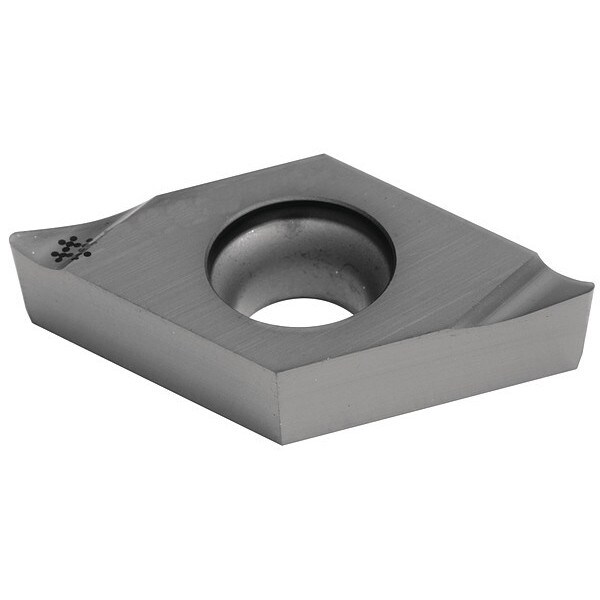

Diamond Turning Insert, Diamond, 3, DCGT, 0.0012 in
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGT |
| Inscribed Circle | 3 |
| Insert Size | 32.5.001 |
| Chip-Breaker | Yes |
| Corner Radius | 0.0012 in |
| Rake | 15 deg |
| ISO Number | DCGT11T3003MN-FC |
| Cutting Direction | Neutral |
| Relief Angle | 7 Degrees |
| Mounting Hole Dia. | 0.173 in |
| Mounting Style | Screw |
| For Use With | Toolholders, Boring Bars |
| Shape | Rhombic |
| Number of Cutting Edges | 2 |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Cast Iron, Aluminum, Stainless Steel, Steel |
| ANSI Code | DCGT32.5.001LFY |
| Finish - Machining | AlTiSiN |
| Thickness | 2.5 |
| Chip-Breaker Style | Single |
| Chip-Breaker Code | LFY |
| Included Angle | 55 Degrees |
| Clearance Angle | 7 deg |
| Primary Material Application ISO Code | P, M, S, K, N |
| Insert Holding Type | Countersink Hole |
| Cutting Application | Turning |
| Manufacturer Grade | AC5015S |
| Features | Excellent Wear Resistance |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
