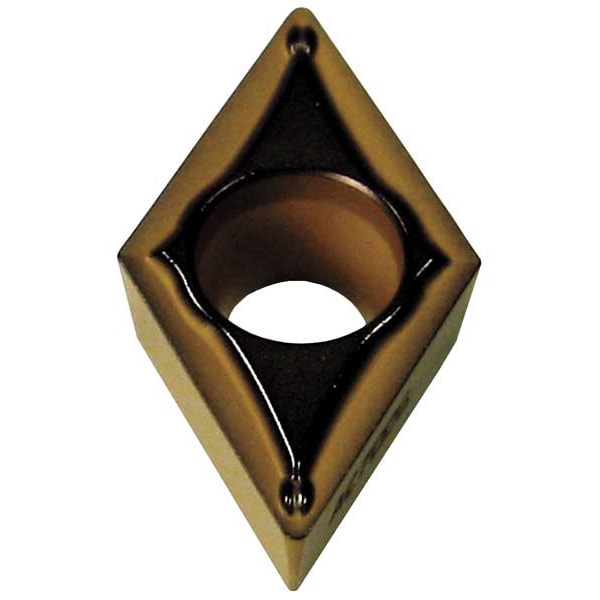

Diamond Turning Insert, Diamond, 3, DCMT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCMT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | AC700G |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | DCMT11T304NSU |
| Workpiece Compatibility | Cast Iron (K) |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Mounting Hole Dia. | 0.173 |
| Non Ferrous (N) Compatibility | No |
| No. of Edges | 2 |
| Mounting Style | Screw-On |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Relief Angle | 7 Degrees |
| Nose Radius | 0.0157 in |
| Insert Thickness | 0.156 in |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| For Use With | SDAC, PDJC Toolholders, A-SDUC Boring Bars |
| ANSI Number | DCMT32.51ESU-AC700G |
| Insert Holding Type | Countersink Hole |
| Chip-Breaker Code | ESU |
| Primary Material Application | Steel |
| Features | Excellent Wear Resistance |
| Manufacturer Grade | AC700G |
| Coating Process | CVD |
| Number of Cutting Edges | 2 |
| Primary Material Application ISO Code | P |
| Included Angle | 55 Degrees |
| Chip-Breaker Style | Single |
| Thickness | 2.5 |
| Finish - Machining | Al203+TiCN |
| ANSI Code | DCMT32.51ESU |
| Cutting Application | Turning |
| Material - Machining | Carbide |
| Shape | Rhombic |
| Clearance Angle | 7 deg |
| Measurement System | Fractional Inch |
| Material | Carbide |
| Application | Finishing |
| Style | DCMT |
| Package Quantity | 1 |
