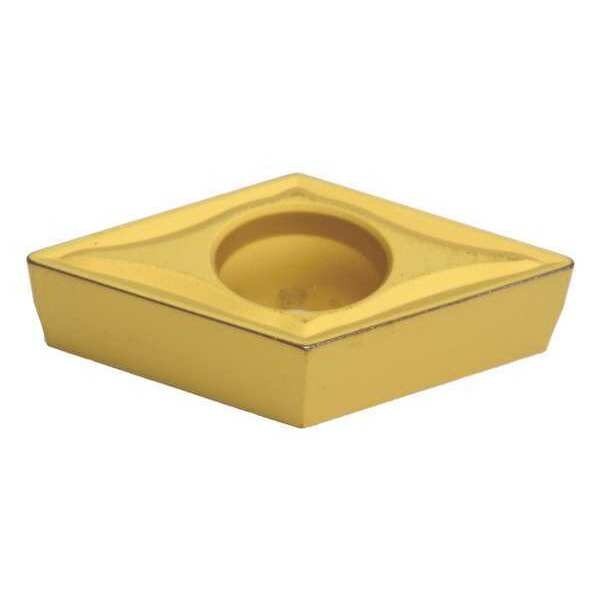

Diamond Turning Insert, Diamond, 3, DCMT, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCMT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | AC810P |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | 0 deg |
| ISO Number | DCMT11T308N-MU |
| Non Ferrous (N) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Coating | CVD |
| No. of Edges | 2 |
| Nose Radius | 0.0156 in |
| Cutting Direction | Neutral |
| Insert Thickness | 0.156 in |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Mounting Style | Top and Hole Clamping |
| Steel (P) Compatibility | Yes |
| ANSI Number | DCMT32.52EMU-AC810P |
| Mounting Hole Dia. | 0.173 in |
| Primary Material Application ISO Code | P10 |
| Chip-Breaker Style | Single |
| Included Angle | 55 Degrees |
| Number of Cutting Edges | 2 |
| Coating Process | CVD |
| Material - Machining | Carbide |
| Cutting Application | Turning |
| Thickness | 2.5 |
| ANSI Code | DCMT32.52EMU |
| Features | Excellent Wear Resistance |
| Shape | Rhombic |
| Clearance Angle | 7 deg |
| Primary Material Application | Steel |
| Insert Holding Type | Countersink Hole |
| Measurement System | Fractional Inch |
| Manufacturer Grade | AC810P |
| Finish - Machining | Al203+TiCN |
| Chip-Breaker Code | EMU |
| Material | Carbide |
| Style | DCMT |
| Application | Roughing |
| Package Quantity | 1 |
