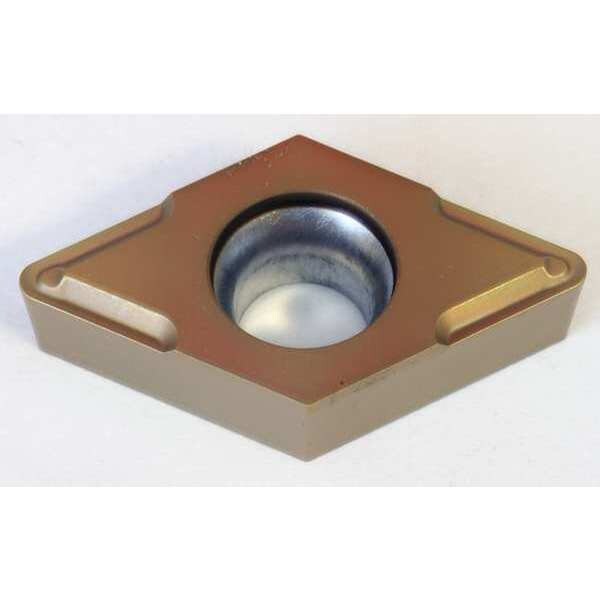

Diamond Turning Insert, Diamond, 3, DCMT, 2, Cermet
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCMT |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | T1500Z |
| Corner Radius | 2 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 10 deg |
| ISO Number | DCMT11T308N-FP |
| Insert Thickness | 0.156 in |
| For Use With | Toolholders, Boring Bars |
| Cutting Direction | Neutral |
| No. of Edges | 2 |
| Mounting Style | Screw-On |
| Coating | CVD |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0156 in |
| Mounting Hole Dia. | 0.173 in |
| ANSI Number | DCMT32.52EFP-T1500Z |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Hardened (H) Compatibility | No |
| Clearance Angle | 7 deg |
| ANSI Code | DCMT32.52EFP |
| Features | Wear Resistant |
| Insert Holding Type | Countersink Hole |
| Chip-Breaker Code | EFP |
| Primary Material Application | Steel |
| Coating Process | PVD |
| Thickness | 2.5 |
| Measurement System | Fractional Inch |
| Shape | Rhombic |
| Number of Cutting Edges | 2 |
| Chip-Breaker Style | Single |
| Cutting Application | Turning |
| Included Angle | 55 Degrees |
| Manufacturer Grade | T1500Z |
| Material - Machining | Cermet |
| Primary Material Application ISO Code | P |
| Material | Cermet |
| Style | DCMT |
| Application | Finishing |
| Package Quantity | 1 |
