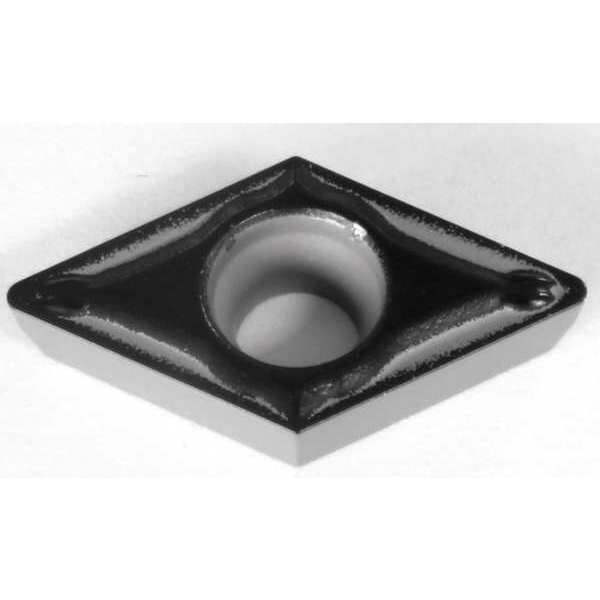

Diamond Turning Insert, Diamond, 3, DPMT, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DPMT |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | AC8025P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | DPMT11T304N-SU |
| Hardened (H) Compatibility | No |
| ANSI Number | DPMT32.51ESU-AC8025P |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Mounting Hole Dia. | 0.173 in |
| Super Alloy (S) Compatibility | No |
| Coating | CVD |
| Cast Iron (K) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 2 |
| Mounting Style | Top and Hole Clamping |
| Insert Thickness | 0.156 in |
| Steel (P) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Cutting Direction | Neutral |
| Nose Radius | 0.0156 in |
| Insert Holding Type | Countersink Hole |
| Included Angle | 55 Degrees |
| Features | Adhesion Resistant, Chipping Resistant |
| Chip-Breaker Style | Single |
| Shape | Rhombic |
| Chip-Breaker Code | ESU |
| Manufacturer Grade | AC8025P |
| Measurement System | Fractional Inch |
| ANSI Code | DPMT32.51ESU |
| Thickness | 2.5 |
| Primary Material Application | Steel |
| Clearance Angle | 11 deg |
| Material - Machining | Carbide |
| Coating Process | CVD |
| Cutting Application | Turning |
| Primary Material Application ISO Code | P25 |
| Finish - Machining | Absotech Platinum |
| Number of Cutting Edges | 2 |
| Material | Carbide |
| Style | DPMT |
| Application | Finishing |
| Package Quantity | 1 |
