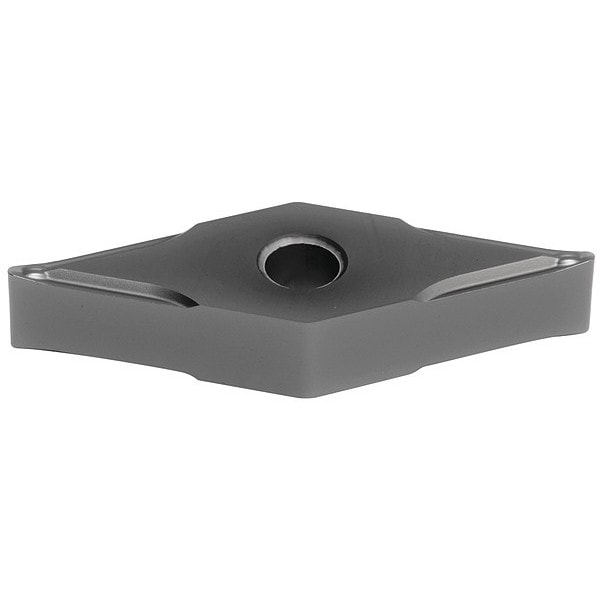

Diamond Turning Insert, Diamond, 3, VNMG, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNMG |
| Inscribed Circle | 3 |
| Insert Size | 330.5 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | 8 deg |
| ISO Number | VNMG160402N-SU |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.15 in |
| Relief Angle | 0 Degrees |
| Mounting Style | Screw |
| For Use With | Toolholders, Boring Bars |
| Primary Material Application ISO Code | P, M, S, K, N |
| Chip-Breaker Code | ESU |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 4 |
| Cutting Application | Turning |
| Features | Excellent Wear Resistance |
| ANSI Code | VNMG330.5ESU |
| Clearance Angle | 0 deg |
| Thickness | 3 |
| Manufacturer Grade | AC5015S |
| Shape | Rhombic |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Cast Iron, Aluminum, Stainless Steel, Steel |
| Finish - Machining | AlTiSiN |
| Material - Machining | Carbide |
| Insert Holding Type | Straight Hole |
| Included Angle | 35 Degrees |
| Chip-Breaker Style | Double |
| Package Quantity | 1 |
