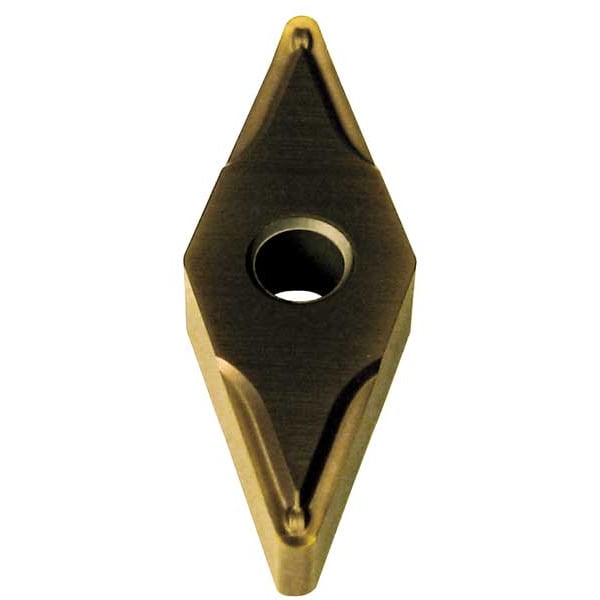

Diamond Turning Insert, Diamond, 3/8 in, VNMG, 1/64 in, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNMG |
| Inscribed Circle | 3 |
| Insert Size | 331 |
| Chip-Breaker | Yes |
| Grade | AC820P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | VNMG160404NSU |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Neutral |
| Nose Radius | 0.0157 in |
| No. of Edges | 4 |
| For Use With | MVJN Toolholders, A-MVUN Boring Bars |
| Insert Thickness | 3/16 in |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Mounting Style | Clamp |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| ANSI Number | VNMG331ESU-AC820P |
| Mounting Hole Dia. | 0.150 |
| Stainless (M) Compatibility | Yes |
| Insert Holding Type | Straight Hole |
| Measurement System | Fractional Inch |
| Included Angle | 35 Degrees |
| Primary Material Application | Cast Iron, Steel |
| Finish - Machining | Al203+TiCN |
| Manufacturer Grade | AC820P |
| Primary Material Application ISO Code | K20, P20 |
| Material - Machining | Carbide |
| Thickness | 3 |
| Clearance Angle | 0 deg |
| Chip-Breaker Style | Double |
| Features | Excellent Wear Resistance and Fracture Resistance |
| Chip-Breaker Code | ESU |
| Number of Cutting Edges | 4 |
| Coating Process | CVD |
| Shape | Rhombic |
| Cutting Application | Turning |
| ANSI Code | VNMG331ESU |
| Material | Carbide |
| Application | Finishing |
| Style | VNMG |
| Package Quantity | 1 |
