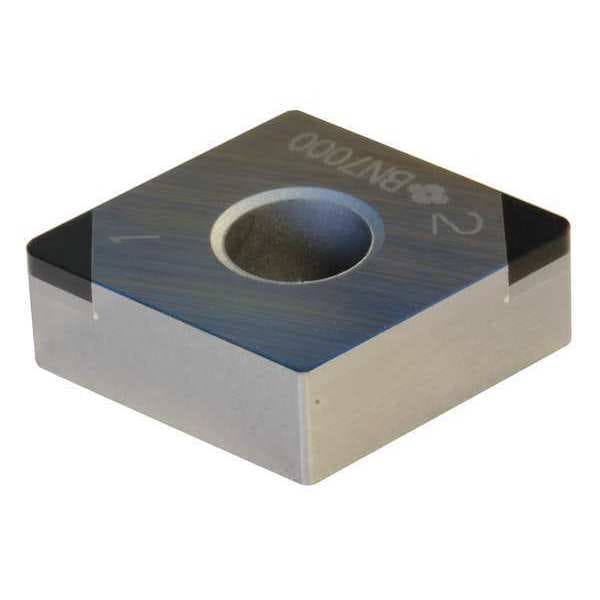

Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNGA |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | No |
| Grade | BN7000 |
| Corner Radius | 2 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | 2MD-CNGA120408 |
| Mounting Style | Top and Hole Clamping |
| Super Alloy (S) Compatibility | Yes |
| Mounting Hole Dia. | 0.203 in |
| Cast Iron (K) Compatibility | Yes |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Insert Thickness | 3/16 in |
| No. of Edges | 2 |
| Stainless (M) Compatibility | No |
| Coating | PVD |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | 2MDCNGA432-BN7000 |
| Workpiece Compatibility | Cast Iron (K), Super Alloy (S) |
| Nose Radius | 0.0313 in |
| Shape | Rhombic |
| Insert Holding Type | Straight Hole |
| Cutting Application | Turning |
| Material - Machining | CBN |
| Depth of Cut | 0.0300 in |
| Manufacturer Grade | BN7000 |
| Thickness | 3 |
| Number of Cutting Edges | 2 |
| Features | Excellent Wear Resistance and Fracture Resistance |
| Finish - Machining | Bright |
| Primary Material Application ISO Code | S, K10 - K20 |
| ANSI Code | 2MD-CNGA432 |
| Clearance Angle | 0 deg |
| Measurement System | Fractional Inch |
| Primary Material Application | Titanium, Nickel, Cast Iron |
| Included Angle | 80 Degrees |
| Material | CBN |
| Application | Finishing |
| Style | CNGA |
| Package Quantity | 1 |
