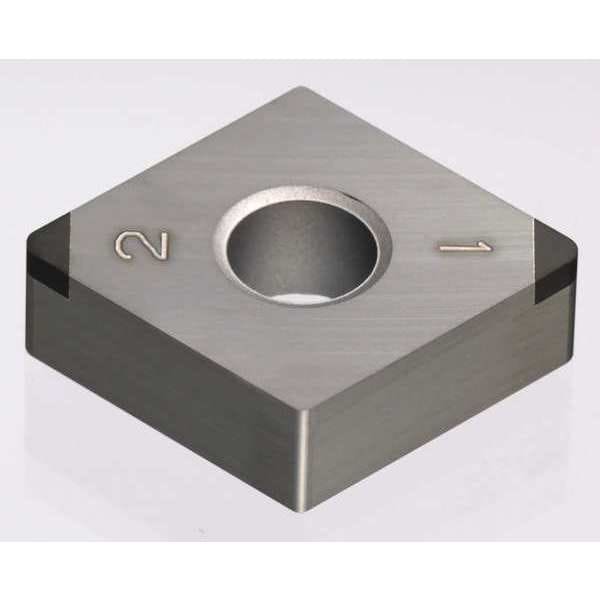

Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNGA |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | BN7500 |
| Corner Radius | 2 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | 2NU-CNGA120408LE |
| Coating | Cermet |
| Workpiece Compatibility | Cast Iron (K), Super Alloy (S) |
| Mounting Style | Top and Hole Clamping |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Cutting Direction | Neutral |
| Cast Iron (K) Compatibility | Yes |
| No. of Edges | 2 |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | 2NUCNGA432LE-BN7500 |
| Hardened (H) Compatibility | No |
| Insert Thickness | 3/16 in |
| Mounting Hole Dia. | 0.203 in |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.0313 in |
| Steel (P) Compatibility | No |
| Finish - Machining | Bright |
| Depth of Cut | 0.0150 in |
| Primary Material Application | Titanium, Nickel, Cast Iron |
| Primary Material Application ISO Code | M, S, K10 |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | LE |
| Shape | Rhombic |
| Cutting Application | Turning |
| ANSI Code | 2NU-CNGA432LE |
| Insert Holding Type | Straight Hole |
| Thickness | 3 |
| Manufacturer Grade | BN7500 |
| Clearance Angle | 0 deg |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 2 |
| Material | CBN |
| Style | CNGA |
| Application | Finishing |
| Package Quantity | 1 |
