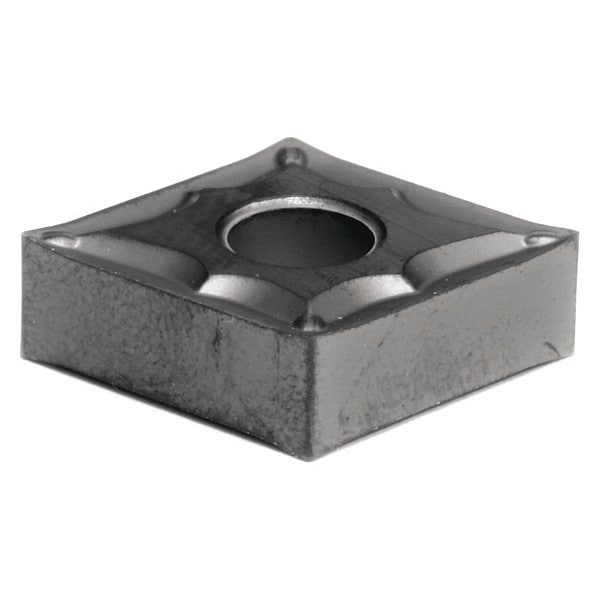

Diamond Turning Insert, Diamond, 4, CNGG, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNGG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | AC5025S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | CNGG120408N-SU |
| No. of Edges | 4 |
| Cast Iron (K) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Coating | PVD |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Mounting Hole Dia. | 0.203 in |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Cutting Direction | Neutral |
| Nose Radius | 0.031 in |
| Stainless (M) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw |
| Relief Angle | 0 Degrees |
| Insert Thickness | 0.187 in |
| ANSI Number | CNGG432ESU |
| Non Ferrous (N) Compatibility | Yes |
| Manufacturer Grade | AC5025S |
| Primary Material Application ISO Code | S10 - S30 |
| Measurement System | Fractional Inch |
| Included Angle | 80 Degrees |
| Thickness | 3 |
| Shape | Rhombic |
| Chip-Breaker Style | Double |
| Insert Holding Type | Straight Hole |
| Features | Excellent Fracture Resistance |
| Coating Process | PVD |
| Primary Material Application | Titanium, Nickel |
| Number of Cutting Edges | 4 |
| Chip-Breaker Code | ESU |
| Clearance Angle | 0 deg |
| ANSI Code | CNGG432ESU |
| Finish - Machining | AlTiSiN |
| Material - Machining | Carbide |
| Cutting Application | Turning |
| Material | Carbide |
| Package Quantity | 1 |
