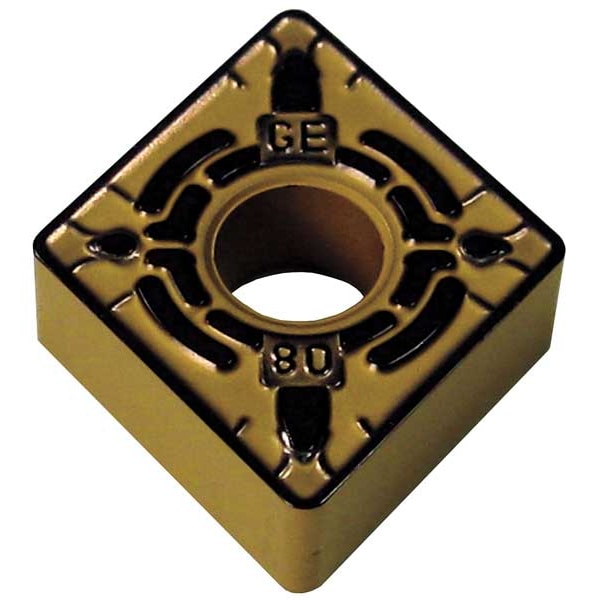

Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | AC830P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | CNMG120404NGE |
| ANSI Number | CNMG431EGE-AC830P |
| Hardened (H) Compatibility | No |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| Insert Thickness | 3/16 in |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Nose Radius | 0.0157 in |
| No. of Edges | 4 |
| For Use With | DCLN, MCLN, Toolholders, A-MCLN Boring Bars |
| Mounting Hole Dia. | 0.203 |
| Cast Iron (K) Compatibility | Yes |
| Relief Angle | 0 Degrees |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Mounting Style | Clamp |
| Measurement System | Fractional Inch |
| Features | Excellent Wear Resistance |
| Chip-Breaker Code | EGE |
| Shape | Rhombic |
| Cutting Application | Turning |
| Primary Material Application ISO Code | P |
| Chip-Breaker Style | Double |
| Included Angle | 80 Degrees |
| Thickness | 3 |
| Number of Cutting Edges | 4 |
| Manufacturer Grade | AC830P |
| ANSI Code | CNMG431EGE |
| Material - Machining | Carbide |
| Finish - Machining | Al203+TiCN |
| Primary Material Application | Steel |
| Insert Holding Type | Straight Hole |
| Clearance Angle | 0 deg |
| Coating Process | CVD |
| Material | Carbide |
| Style | CNMG |
| Application | Medium |
| Package Quantity | 1 |
