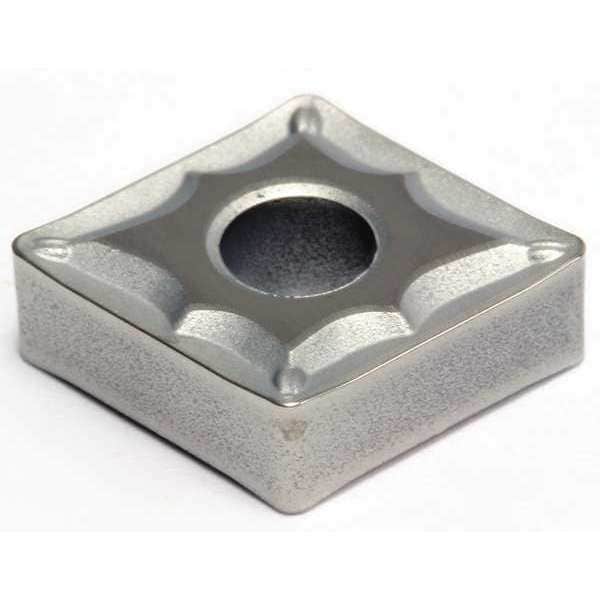

Diamond Turning Insert, Diamond, 4, CNMG, 1, Cermet
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | T1500Z |
| Corner Radius | 1 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | CNMG120404NSU |
| Hardened (H) Compatibility | No |
| ANSI Number | CNMG431ESU-T1500Z |
| Mounting Style | Top and Hole Clamping |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Insert Thickness | 3/16 in |
| Cutting Direction | Neutral |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 4 |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Coating | PVD |
| Nose Radius | 0.0156 in |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Primary Material Application ISO Code | P |
| Number of Cutting Edges | 4 |
| Manufacturer Grade | T1500Z |
| ANSI Code | CNMG431ESU |
| Measurement System | Fractional Inch |
| Coating Process | PVD |
| Features | Wear Resistant |
| Chip-Breaker Style | Double |
| Shape | Rhombic |
| Material - Machining | Cermet |
| Included Angle | 80 Degrees |
| Thickness | 3 |
| Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Primary Material Application | Steel |
| Insert Holding Type | Straight Hole |
| Chip-Breaker Code | ESU |
| Material | Cermet |
| Application | Finishing |
| Style | CNMG |
| Package Quantity | 1 |
