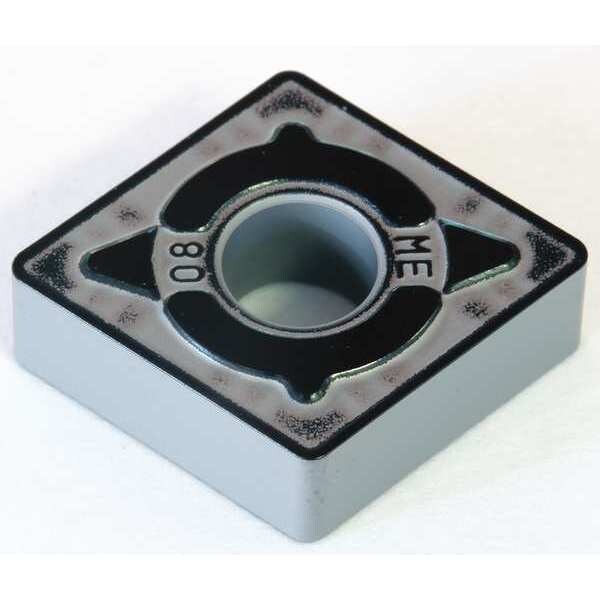

Diamond Turning Insert, Diamond, 4, CNMG, 4, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 434 |
| Chip-Breaker | Yes |
| Grade | AC8025P |
| Corner Radius | 4 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMG120416N-ME |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Stainless (M) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Super Alloy (S) Compatibility | No |
| Insert Thickness | 3/16 in |
| Mounting Style | Top and Hole Clamping |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Coating | CVD |
| No. of Edges | 4 |
| Nose Radius | 1/16 in |
| ANSI Number | CNMG434EME-AC8025P |
| Primary Material Application | Steel |
| Clearance Angle | 0 deg |
| Thickness | 3 |
| Cutting Application | Turning |
| Finish - Machining | Absotech Platinum |
| Measurement System | Fractional Inch |
| Coating Process | CVD |
| Insert Holding Type | Straight Hole |
| Material - Machining | Carbide |
| ANSI Code | CNMG434EME |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | EME |
| Manufacturer Grade | AC8025P |
| Number of Cutting Edges | 4 |
| Features | Adhesion Resistant, Chipping Resistant |
| Shape | Rhombic |
| Chip-Breaker Style | Double |
| Primary Material Application ISO Code | P25 |
| Material | Carbide |
| Style | CNMG |
| Application | Roughing |
| Package Quantity | 1 |
