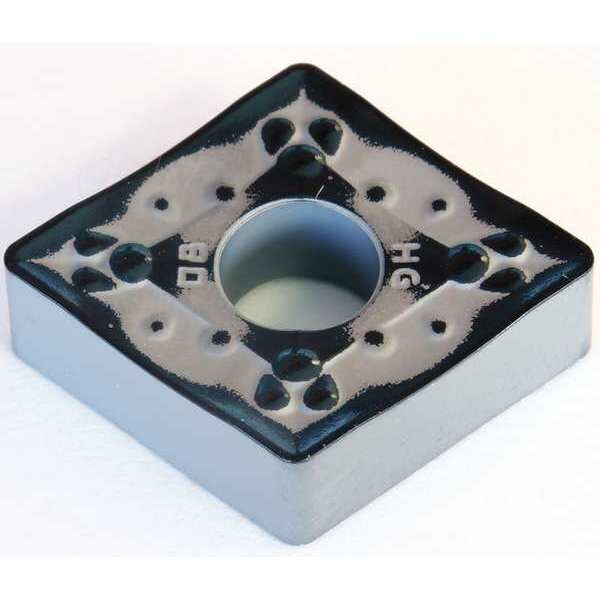

Diamond Turning Insert, Diamond, 4, CNMM, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMM |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | AC8025P |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | CNMM120404NHG |
| Stainless (M) Compatibility | Yes |
| Insert Thickness | 3/16 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Mounting Style | Top and Hole Clamping |
| Cast Iron (K) Compatibility | Yes |
| Coating | CVD |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.0313 in |
| ANSI Number | CNMM432EHG-AC8025P |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.203 in |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 4 |
| Steel (P) Compatibility | Yes |
| Thickness | 3 |
| Number of Cutting Edges | 4 |
| Shape | Rhombic |
| Chip-Breaker Style | Single |
| Material - Machining | Carbide |
| Finish - Machining | Absotech Platinum |
| ANSI Code | CNMM432EHG |
| Included Angle | 80 Degrees |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | EHG |
| Primary Material Application ISO Code | P25 |
| Clearance Angle | 0 deg |
| Coating Process | CVD |
| Features | Adhesion Resistant, Chipping Resistant |
| Manufacturer Grade | AC8025P |
| Insert Holding Type | Straight Hole |
| Cutting Application | Turning |
| Primary Material Application | Steel |
| Material | Carbide |
| Application | Roughing |
| Style | CNMM |
| Package Quantity | 1 |
