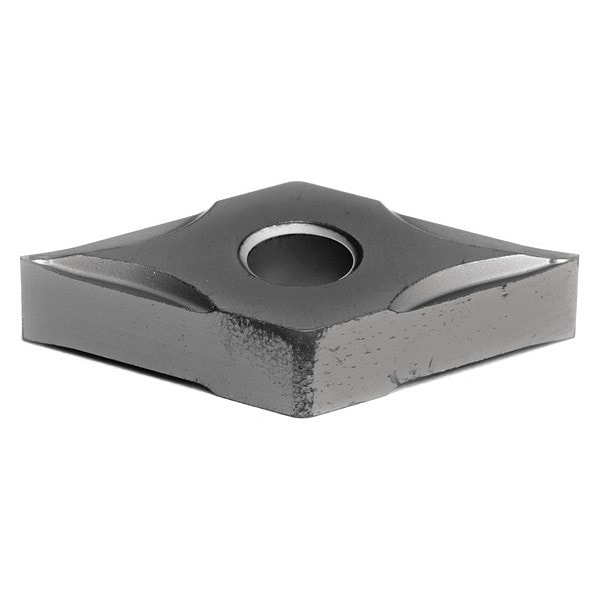

Diamond Turning Insert, Diamond, 4, DNGG, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNGG |
| Inscribed Circle | 4 |
| Insert Size | 430.5 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | 8 deg |
| ISO Number | DNGG150402N-SU |
| Mounting Hole Dia. | 0.312 in |
| Cutting Direction | Neutral |
| Relief Angle | 0 Degrees |
| Mounting Style | Screw |
| For Use With | Toolholders, Boring Bars |
| ANSI Code | DNGG430.5ESU |
| Primary Material Application ISO Code | S10 - S30 |
| Thickness | 3 |
| Chip-Breaker Code | ESU |
| Number of Cutting Edges | 4 |
| Shape | Rhombic |
| Manufacturer Grade | AC5025S |
| Clearance Angle | 0 deg |
| Insert Holding Type | Straight Hole |
| Chip-Breaker Style | Double |
| Included Angle | 55 Degrees |
| Coating Process | PVD |
| Features | Excellent Fracture Resistance |
| Primary Material Application | Titanium, Nickel |
| Cutting Application | Turning |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| Finish - Machining | AlTiSiN |
| Package Quantity | 1 |
