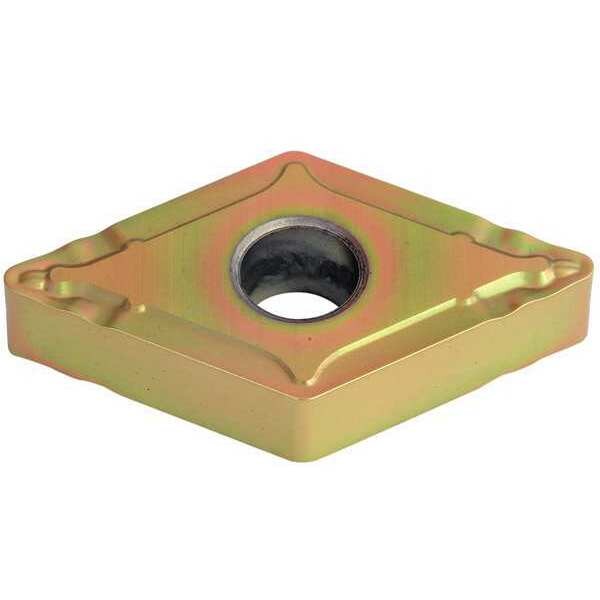

Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | T1500Z |
| Corner Radius | 1 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | DNMG150404N-SX |
| Nose Radius | 0.0156 in |
| Coating | Uncoated |
| ANSI Number | DNMG431ESX-T1500Z |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 2 |
| Mounting Style | Top and Hole Clamping |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Hardened (H) Compatibility | No |
| Cutting Direction | Neutral |
| Insert Thickness | 3/16 in |
| Non Ferrous (N) Compatibility | No |
| Shape | Rhombic |
| Number of Cutting Edges | 2 |
| Manufacturer Grade | T1500Z |
| Material - Machining | Cermet |
| Included Angle | 55 Degrees |
| Primary Material Application ISO Code | P |
| Chip-Breaker Code | ESX |
| Features | Wear Resistant |
| Chip-Breaker Style | Double |
| Thickness | 3 |
| Measurement System | Fractional Inch |
| Clearance Angle | 0 deg |
| Primary Material Application | Steel |
| Cutting Application | Turning |
| ANSI Code | DNMG431ESX |
| Coating Process | PVD |
| Insert Holding Type | Straight Hole |
| Material | Cermet |
| Application | Finishing |
| Style | DNMG |
| Package Quantity | 1 |
