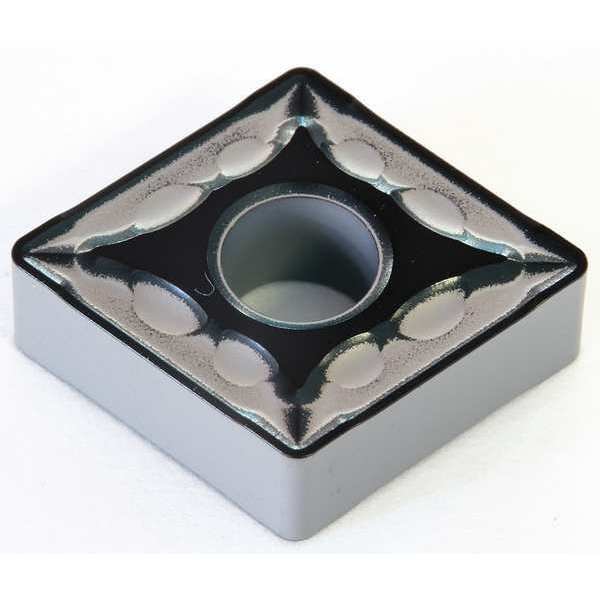

Diamond Turning Insert, Diamond, 8, CNMG, 6, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 8 |
| Insert Size | 866 |
| Chip-Breaker | Yes |
| Grade | AC8025P |
| Corner Radius | 6 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | 0 deg |
| ISO Number | CNMG250924N-MU |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 4 |
| Mounting Style | Top and Hole Clamping |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Coating | CVD |
| Insert Thickness | 3/8 in |
| Stainless (M) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | CNMG866EMU-AC8025P |
| Mounting Hole Dia. | 0.362 in |
| Nose Radius | 0.0938 in |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Hardened (H) Compatibility | No |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| ANSI Code | CNMG866EMU |
| Shape | Rhombic |
| Number of Cutting Edges | 4 |
| Cutting Application | Turning |
| Finish - Machining | Absotech Platinum |
| Features | Adhesion Resistant, Chipping Resistant |
| Primary Material Application ISO Code | P25 |
| Chip-Breaker Style | Double |
| Manufacturer Grade | AC8025P |
| Included Angle | 80 Degrees |
| Primary Material Application | Steel |
| Coating Process | CVD |
| Clearance Angle | 0 deg |
| Chip-Breaker Code | EMU |
| Insert Holding Type | Straight Hole |
| Thickness | 6 |
| Material | Carbide |
| Application | Roughing |
| Style | CNMG |
| Package Quantity | 1 |
