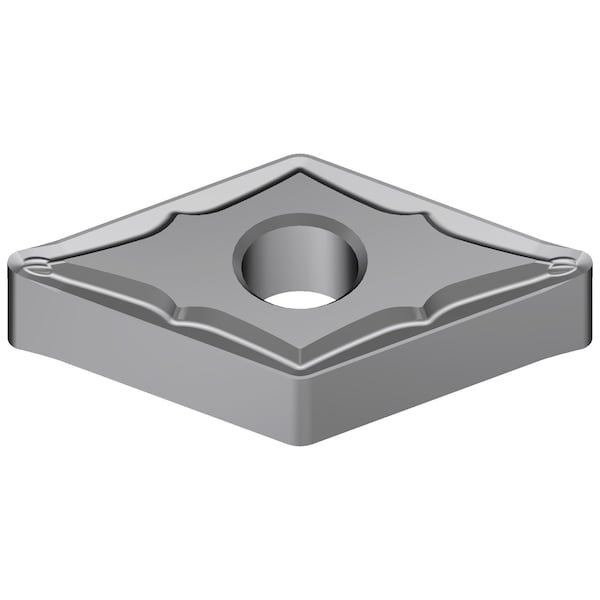

DNMG443ESU Grade AC8035P Carbide Turning Insert
| Insert Style | DNMG |
|---|---|
| Inscribed Circle | 1/2 in |
| Chip-Breaker | ESU |
| Insert Material | Carbide |
| Insert Application | P25, P35, P40 |
| Rake | Negative |
| Workpiece Material | Steel |
| Insert Thickness | 1/4 in |
| Relief Angle | 0 Degree |
| Coating | Absotech |
| Nose Radius | 0.0472 in |
| Mounting Hole Dia. | 5.16 mm |
| Corner Angle | 55 |
| Series | AC8000P |
| Cutting Edge Length | 0.6102 in |
| Insert Holding Method | Clamp, Pin |
| Tolerance Class | M |
| Package Quantity | 1 |
