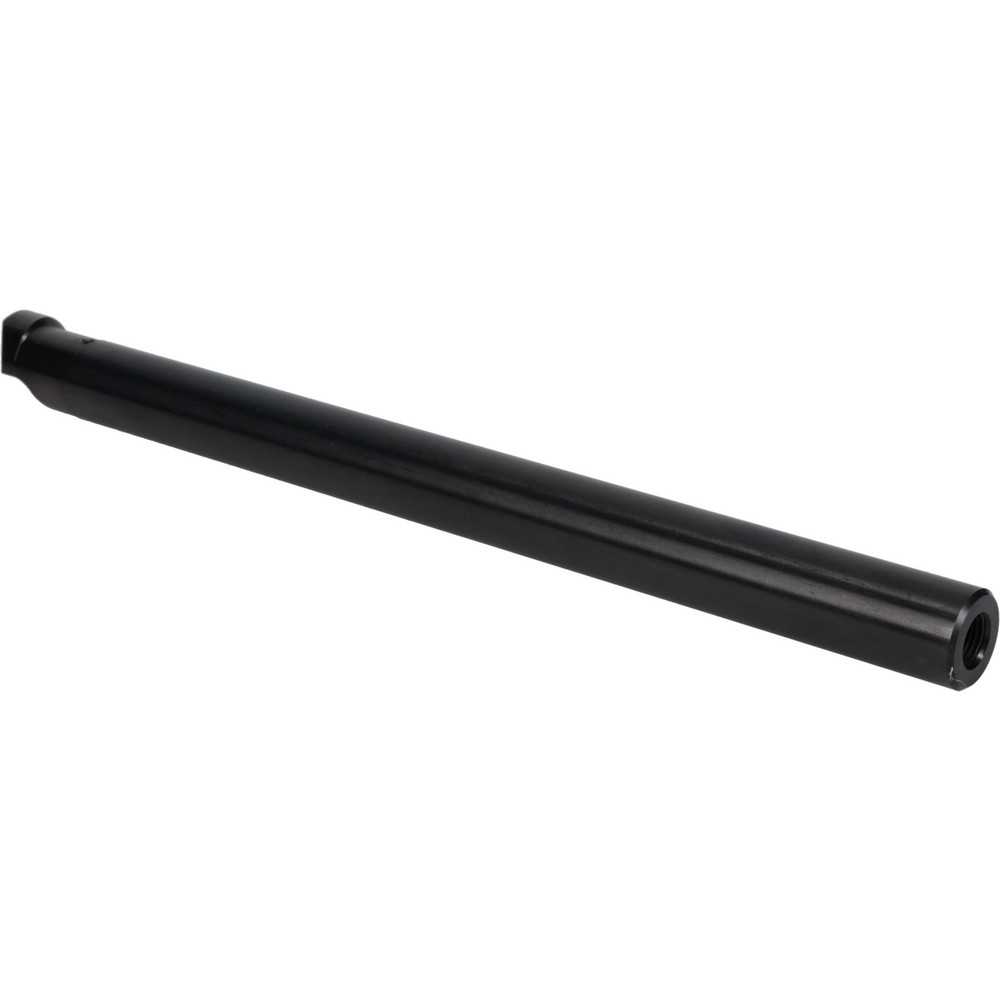

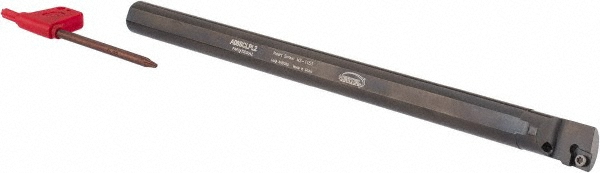

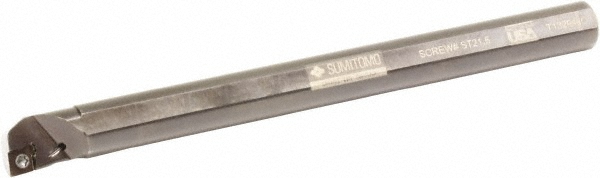

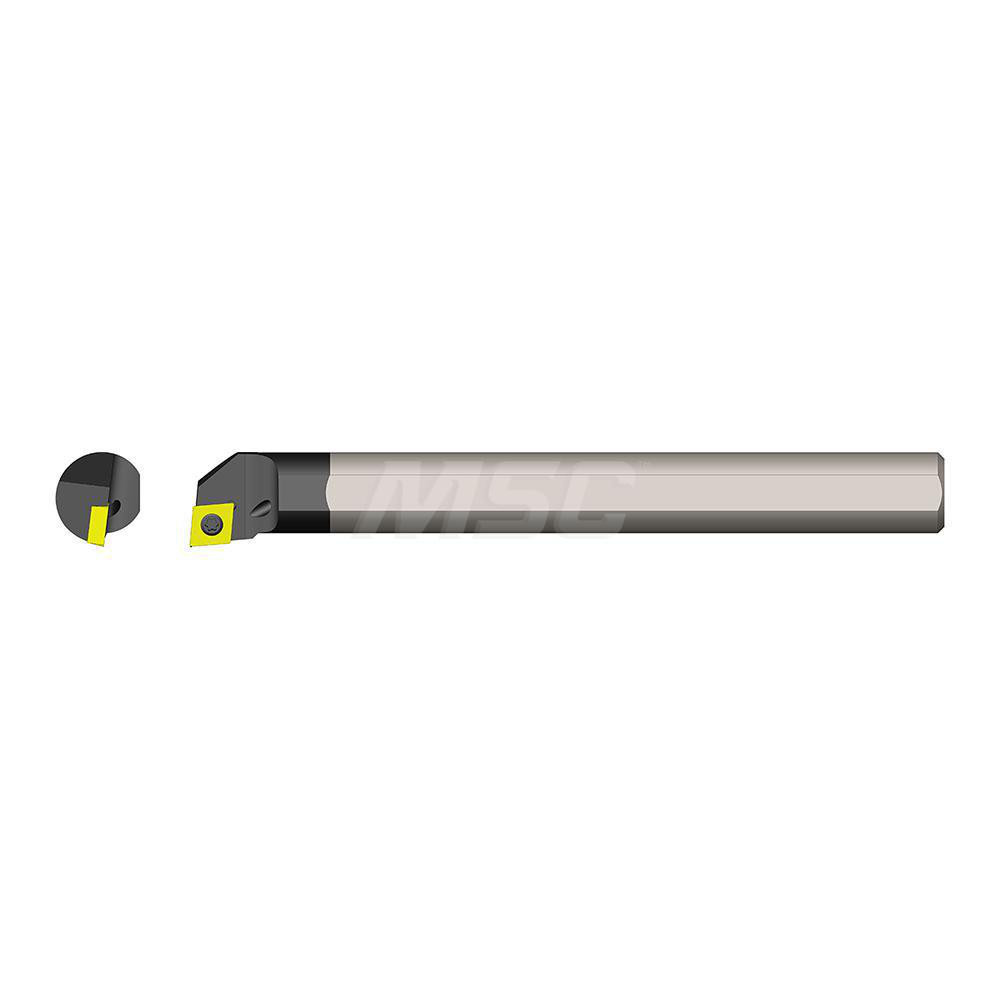

8.0000" OAL, Screw, Uses CPMT 21.51 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
|---|---|
| Toolholder Style | A-SCLP |
| Tool Material | Steel |

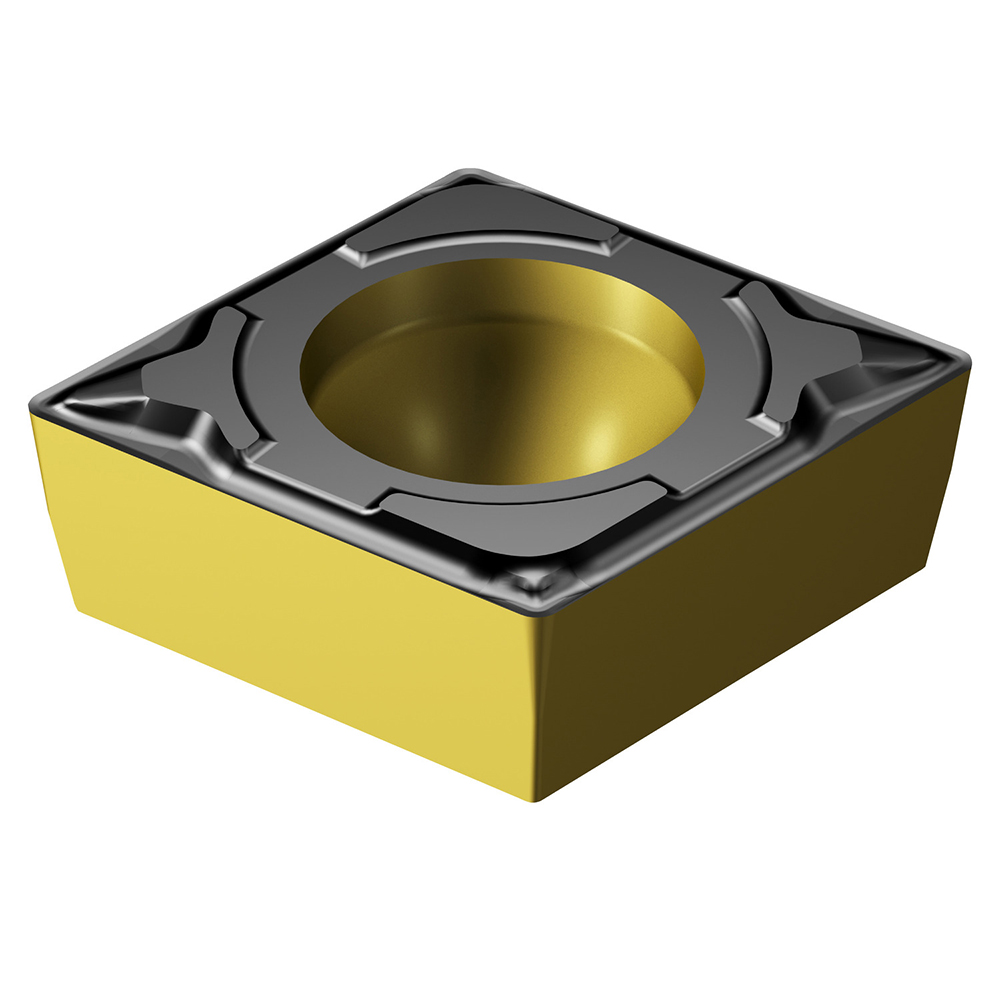

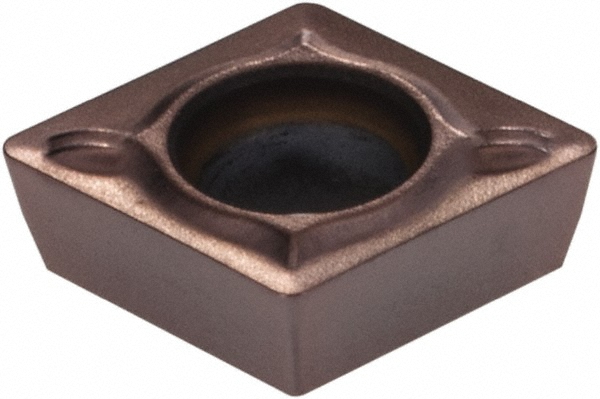

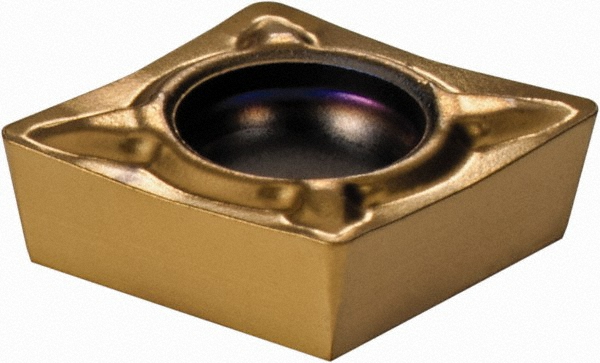

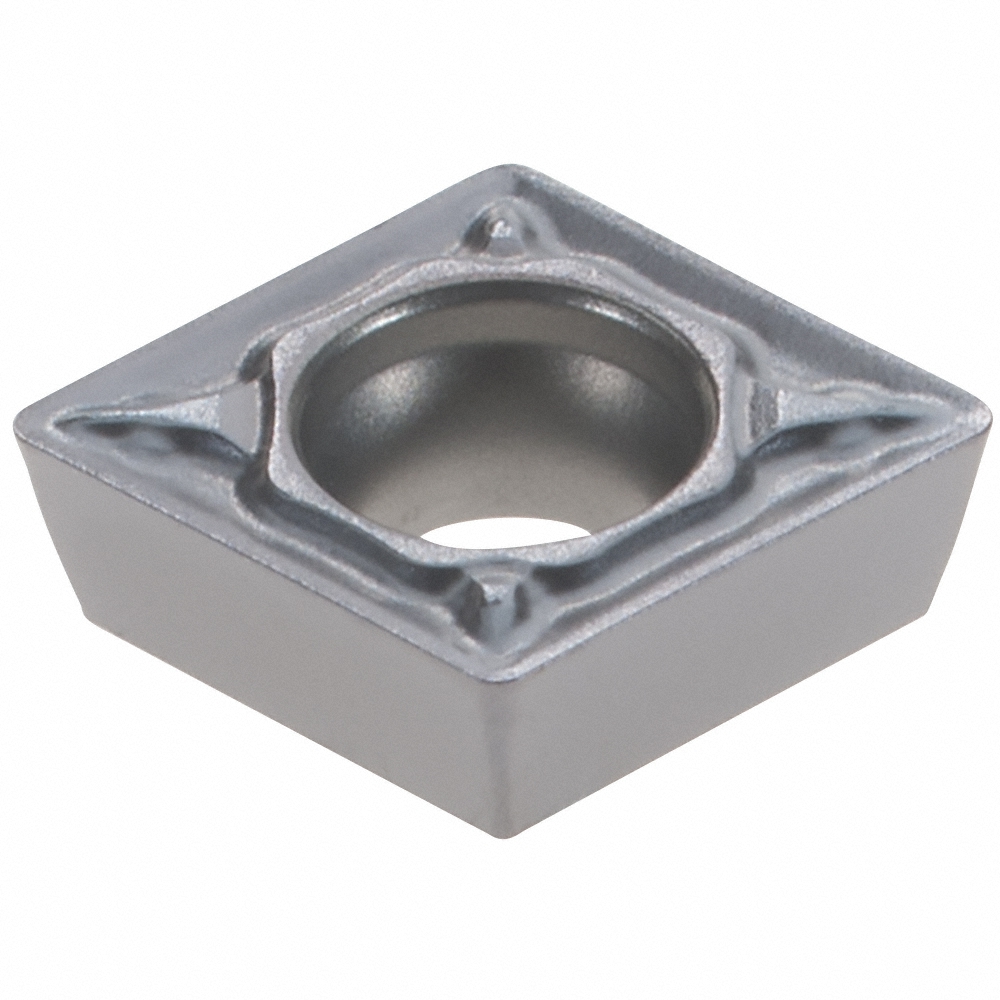

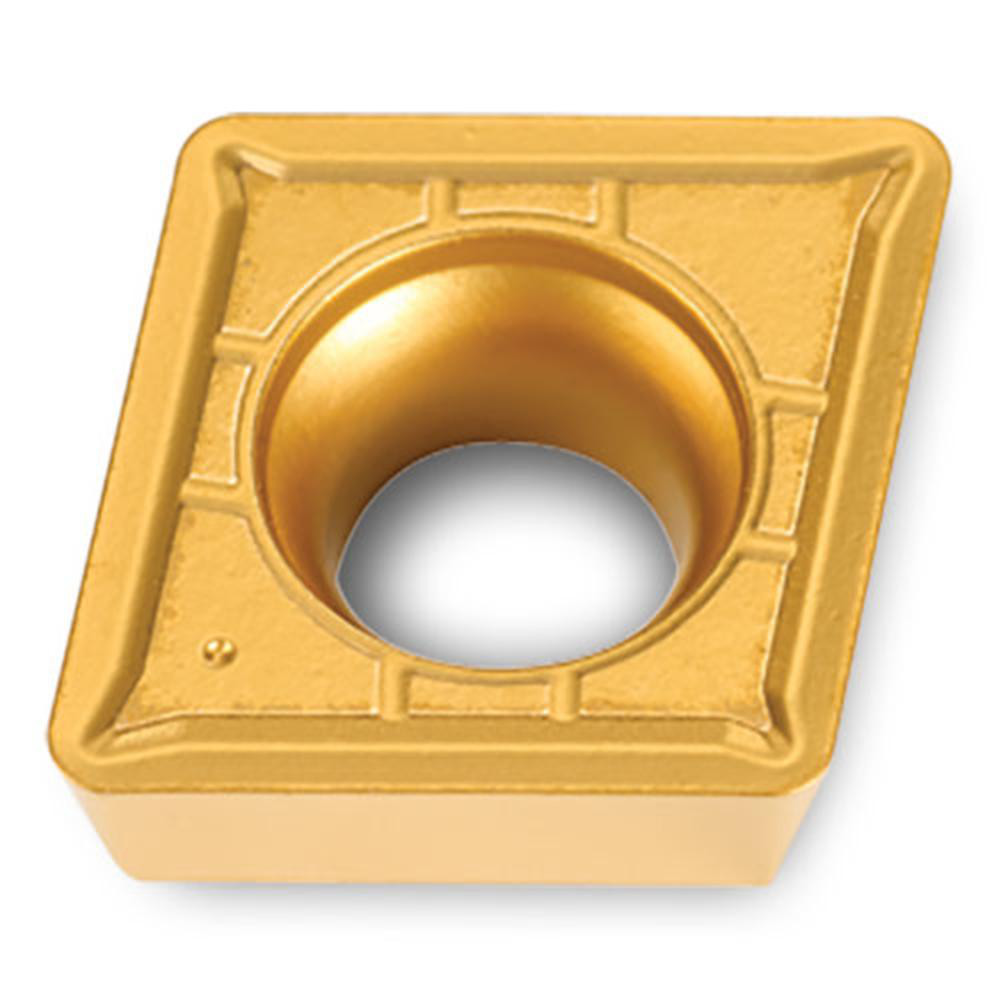

| Insert Compatibility | CPMT 21.51 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 8.0000 |
| Compatible Insert Size Code | 21.51 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -3.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Standards | ANSI-ISO |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 53947172 |
