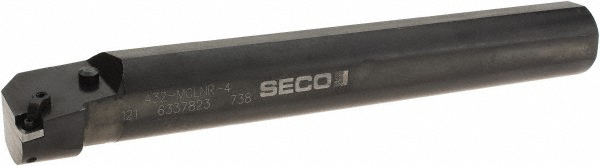

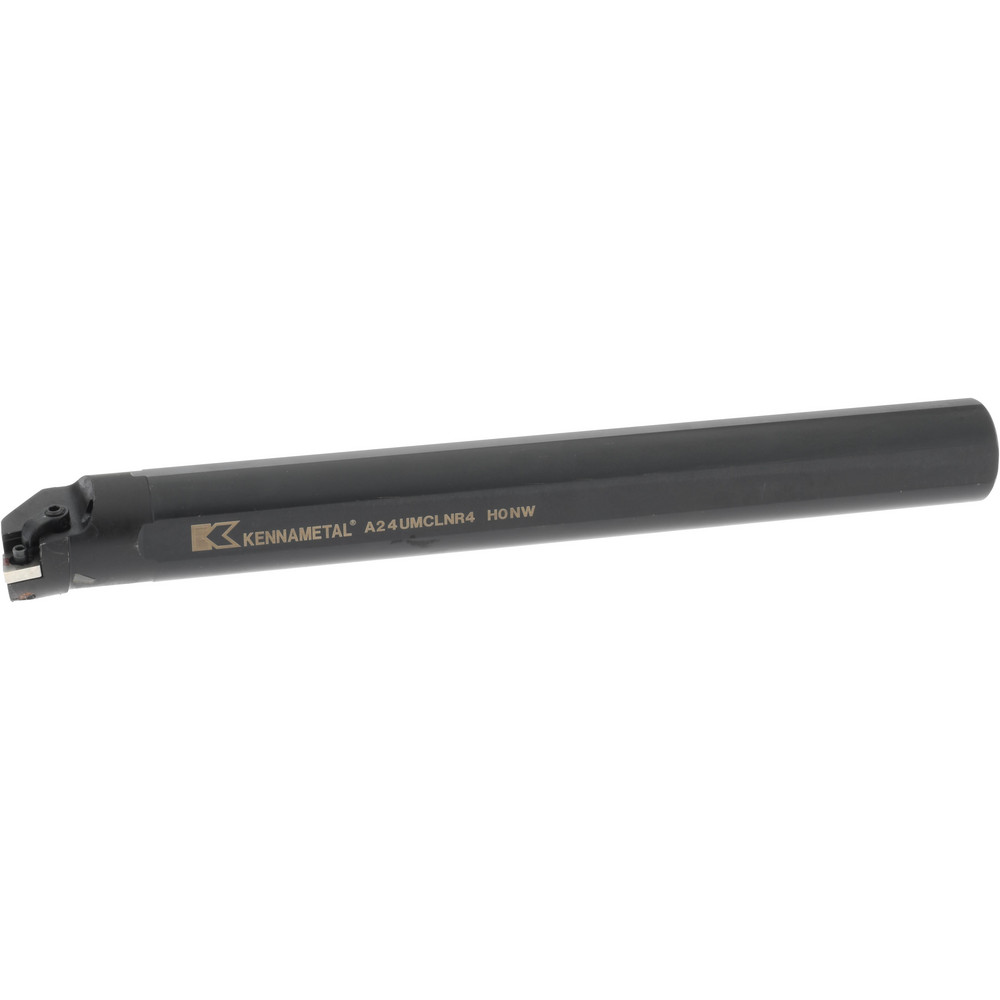

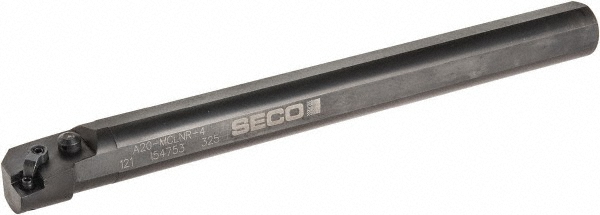

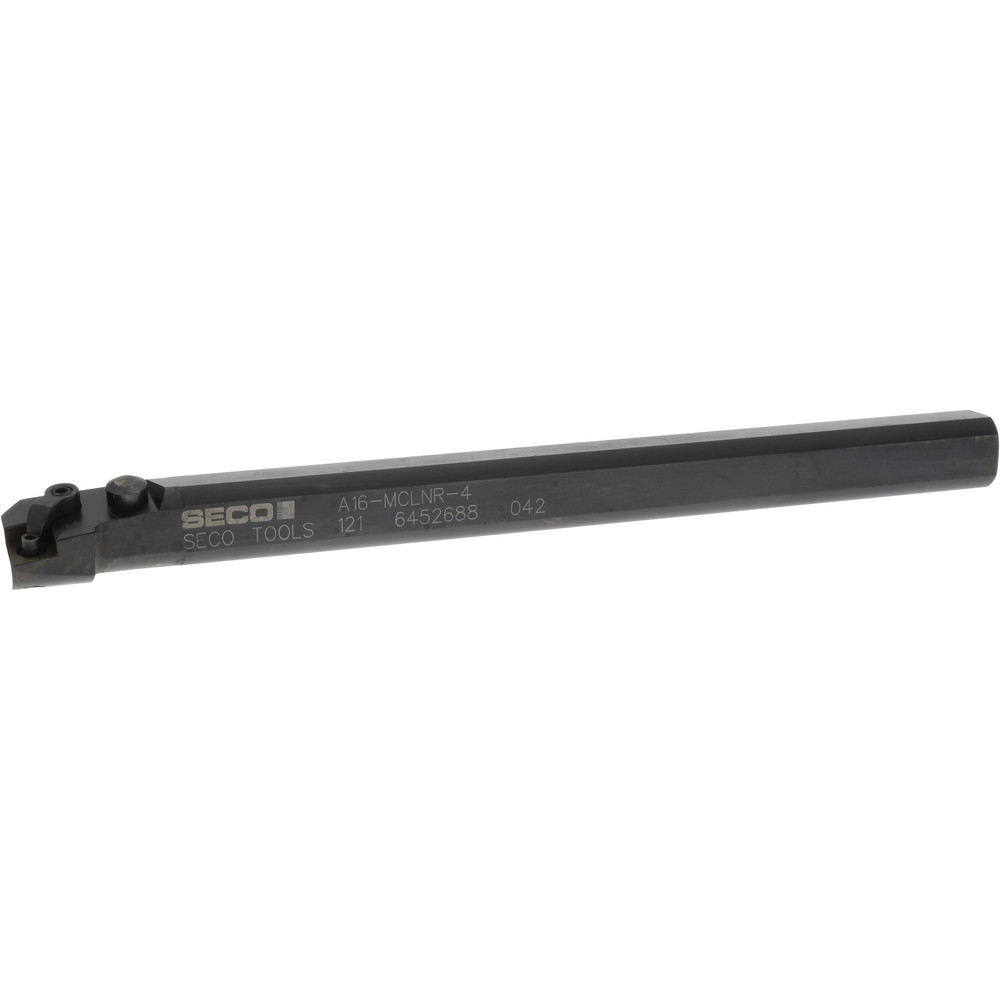

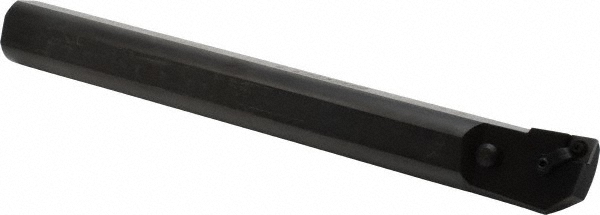

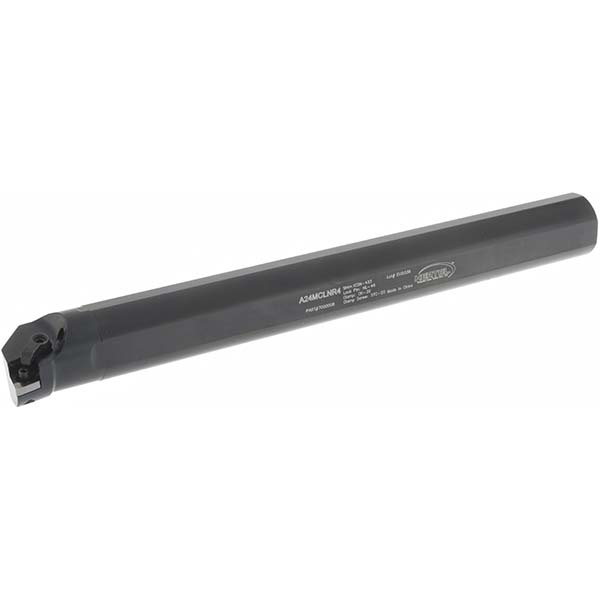

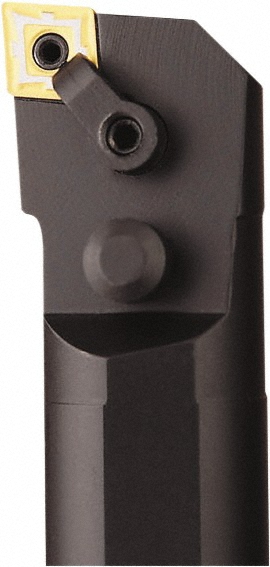

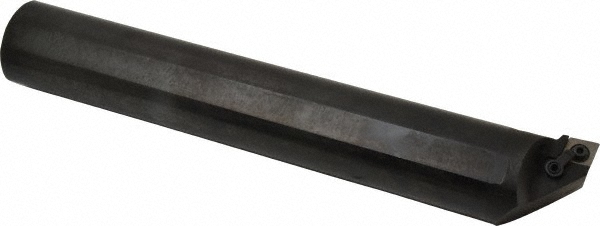

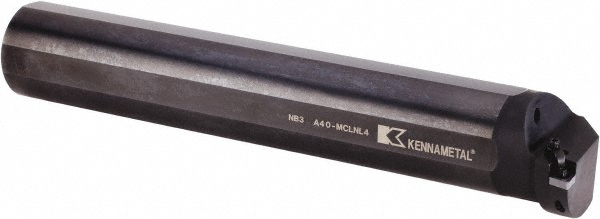

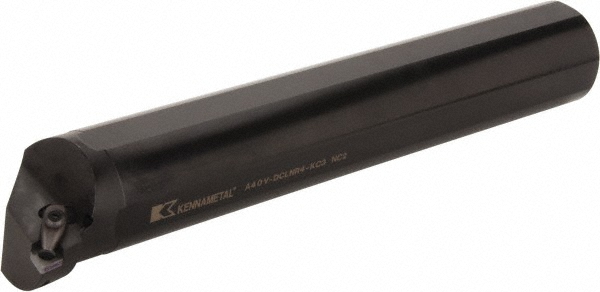

16.0000" OAL, Pin & Clamp, Uses CNMG 432 Inserts
| Minimum Bore Diameter (Decimal Inch) | 3.0300 |
|---|---|
| Toolholder Style | A-MCLN |
| Tool Material | Steel |
| Insert Compatibility | CNMG 432 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Compatible Insert Size Code | 432 |
| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Positive |
| Rake Angle | 10.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 1.5310 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 71969265 |
