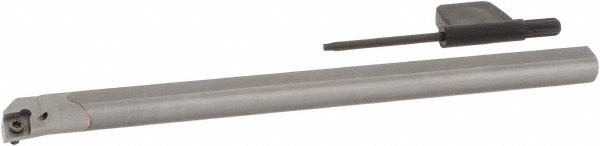

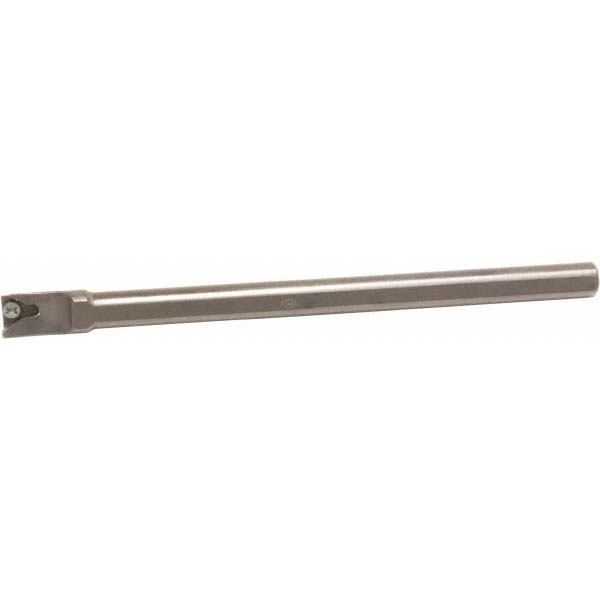

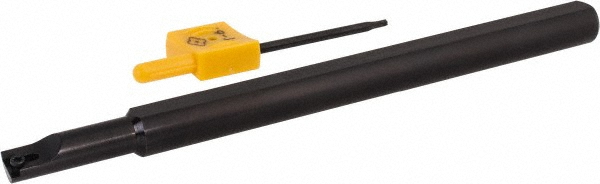

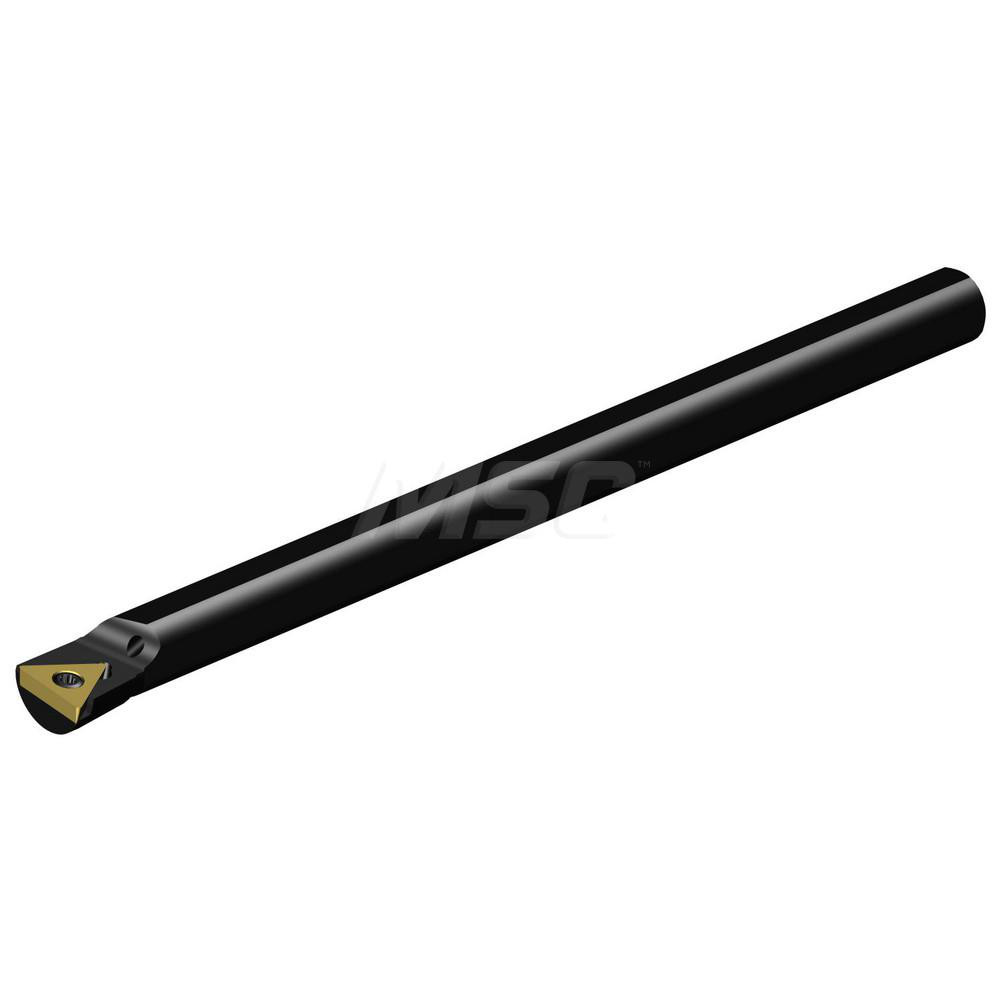

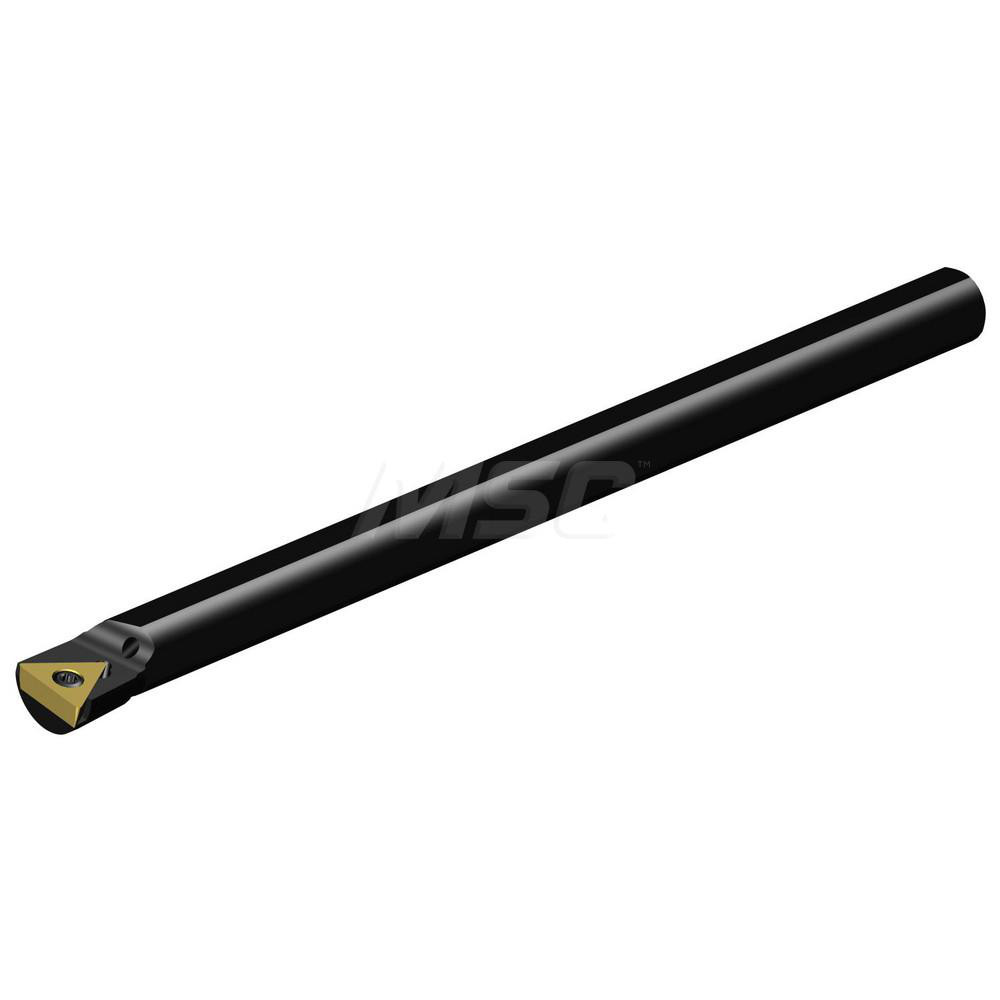

6.0000" OAL, Screw, Uses TPGT 22 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Toolholder Style | BSTJO |
| Tool Material | Steel |
| Insert Compatibility | TPGT 22 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Compatible Insert Size Code | 22 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Negative |
| Rake Angle | -5.00 |
| Lead Angle | 2 |
| Series | BSTJO |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 00444133 |
