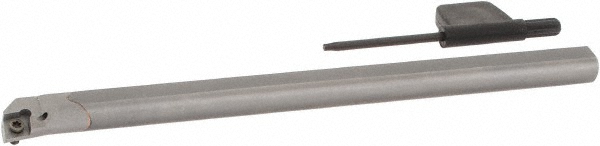

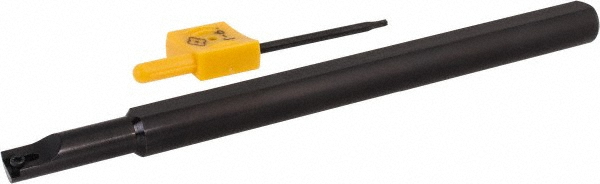

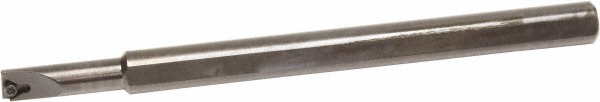

5.0000" OAL, Screw, Uses TBGT 520 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.3130 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.8000 |
| Toolholder Style | C-STUB |
| Tool Material | Solid Carbide |
| Insert Compatibility | TBGT 520 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Compatible Insert Size Code | 520 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Negative |
| Rake Angle | -12.00 |
| Series | Sumi-UFO |
| Insert Inscribed Circle (Inch) | 5/8 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | No |
| Country of Origin | Japan |
| MSC Number | MSC# 53948378 |
