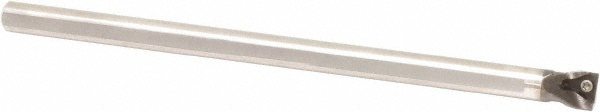

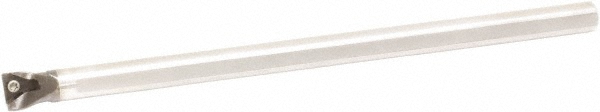

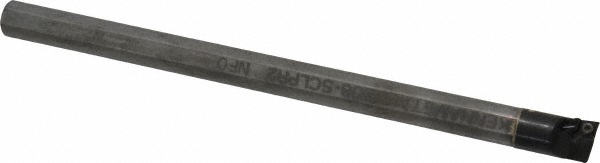

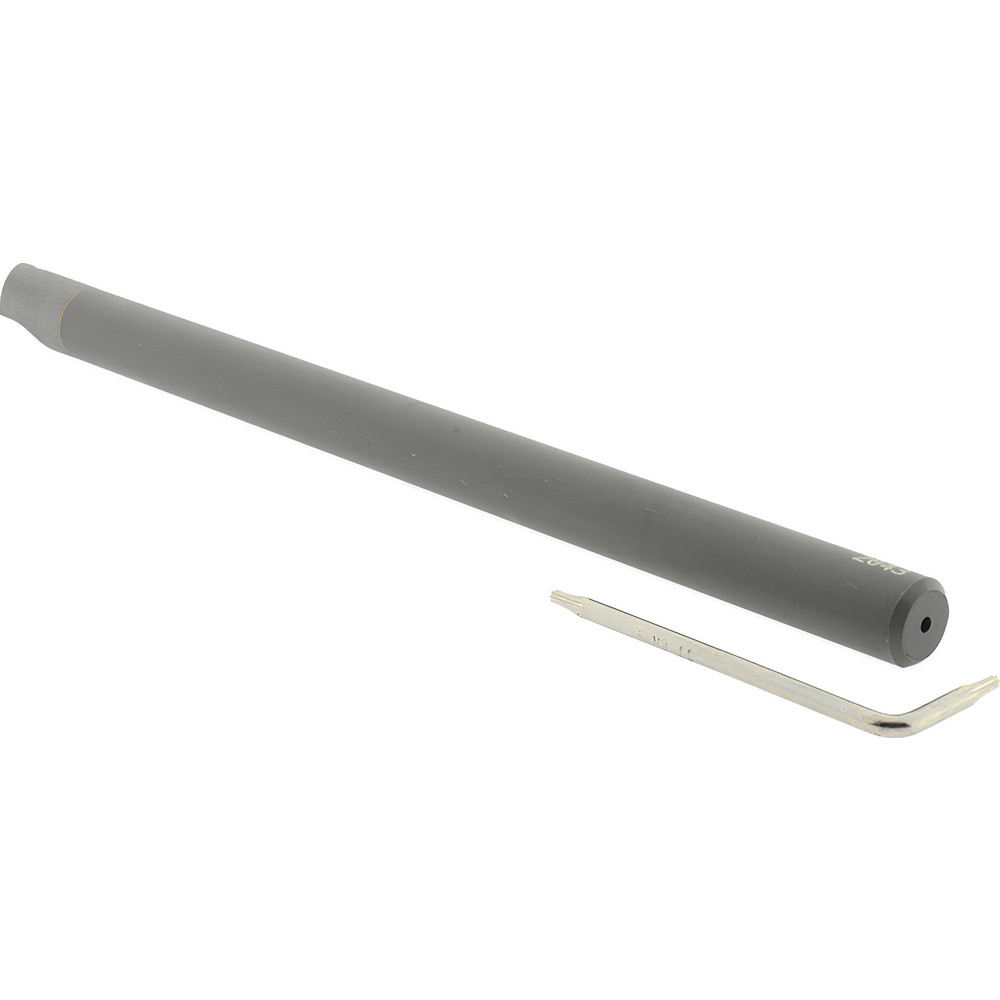

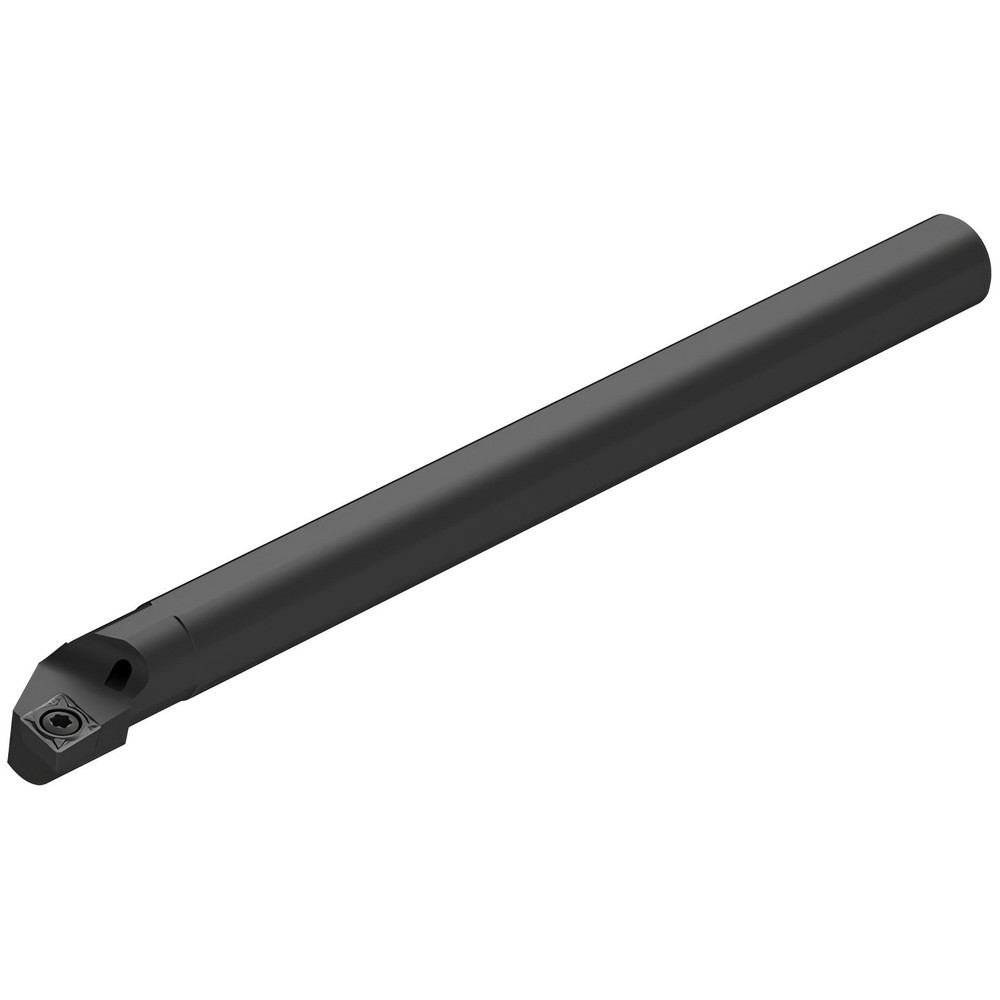

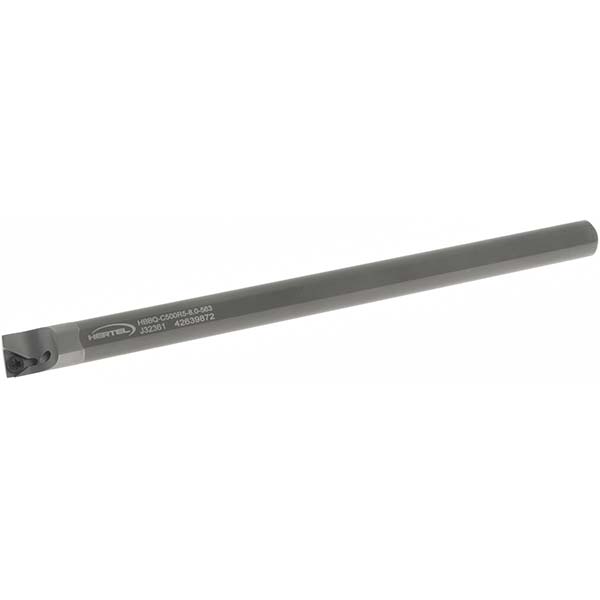

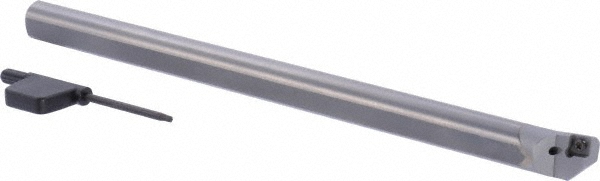

8.0000" OAL, Screw, Uses TPGT 21.5 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.6250 |
|---|---|
| Toolholder Style | C-STUP |
| Tool Material | Solid Carbide |
| Insert Compatibility | TPGT 21.5 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 8.0000 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Negative |
| Rake Angle | -6.00 |
| Lead Angle | 93 |
| Series | Sumi-UFO |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3130 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 71969166 |
