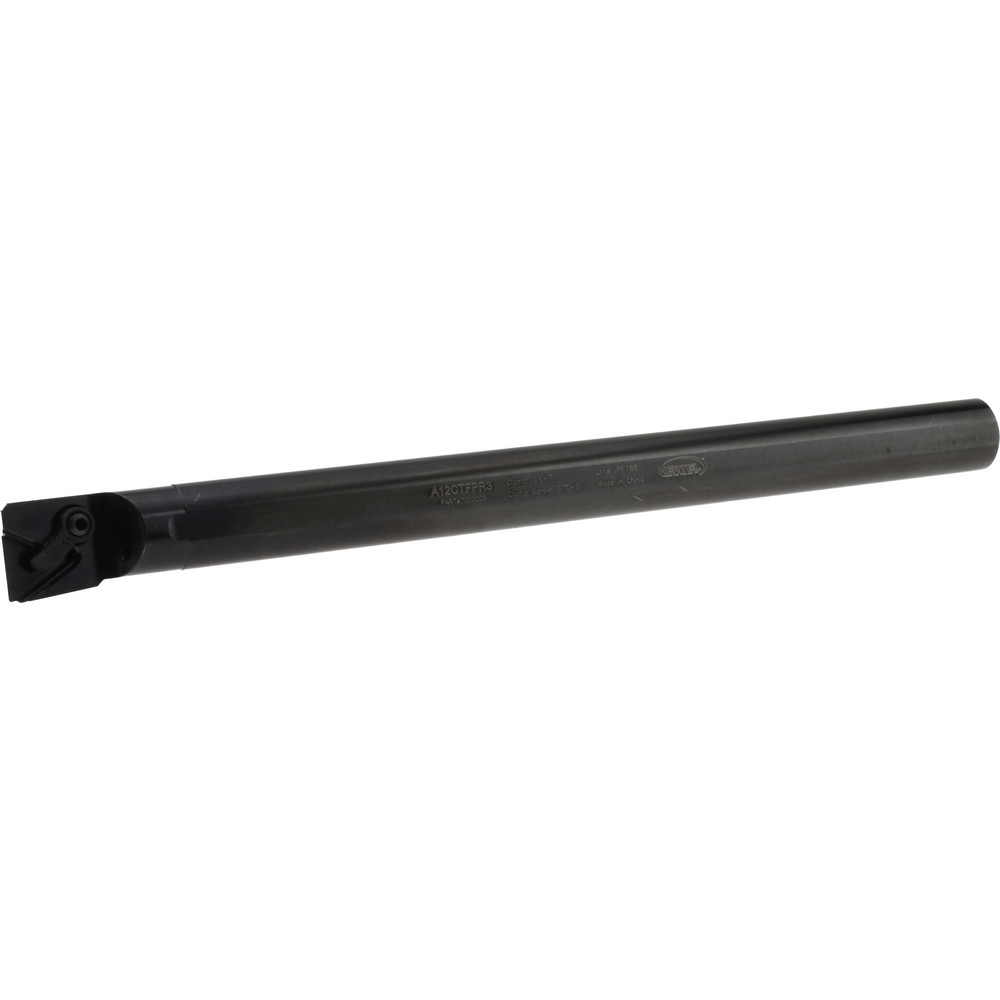

Screw, Uses CP.. 32.5 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
|---|---|
| Toolholder Style | D-SCLP |
| Insert Compatibility | CP.. 32.5 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | 32.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -4.00 |
| Lead Angle | 95 |
| Series | SumiTurn X-Bar |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1560 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.4500 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Through | No |
| Country of Origin | Japan |
| MSC Number | MSC# 53947891 |
