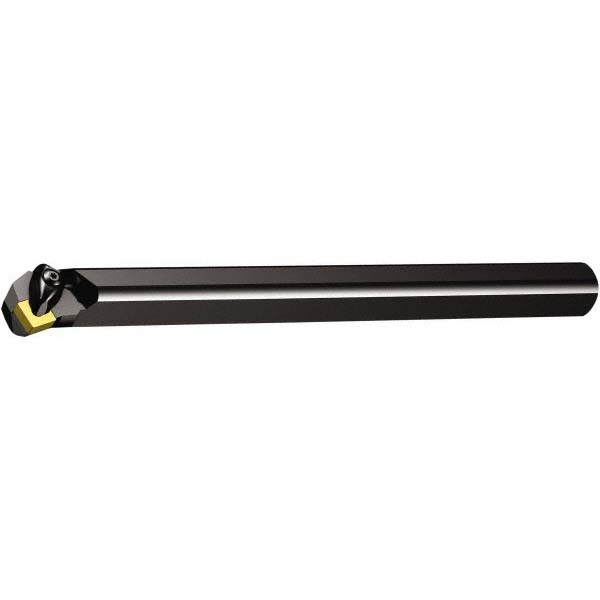

Clamp, Uses CNMG 432 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
|---|---|
| Toolholder Style | D-DCLN |
| Insert Compatibility | CNMG 432 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | 432 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Positive |
| Rake Angle | 14.00 |
| Lead Angle | 5 |
| Series | SumiTurn X-Bar |
| Insert Inscribed Circle (Inch) | 1/2 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 78289352 |
