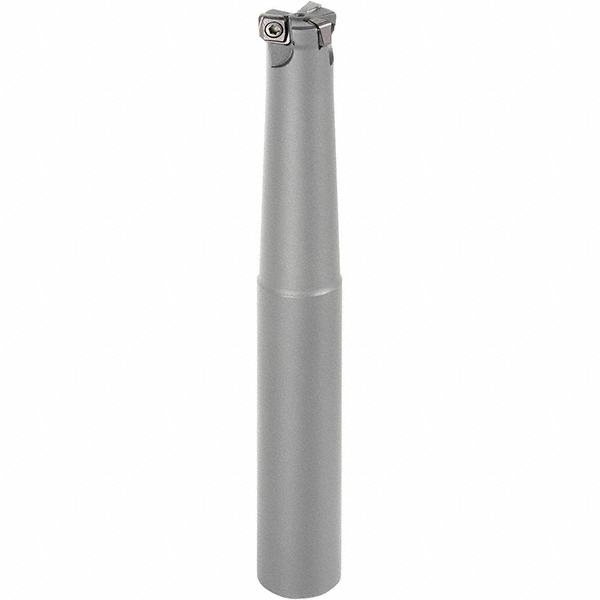

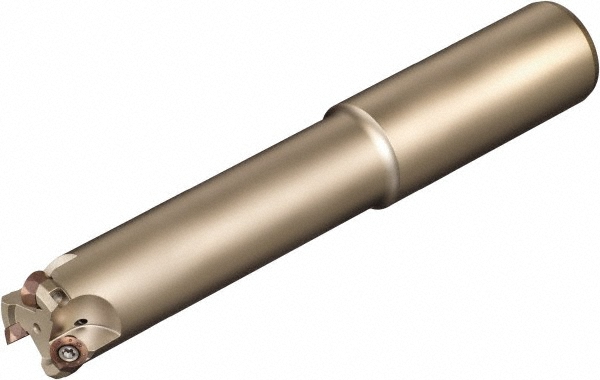

Uses 2 RDET10 Inserts, 1" Cylindrical Shank
| Cutting Diameter (mm) | 25.40 |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Toolholder Style | RSX; RSXF |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter | 0.9063 |
| Compatible Insert Style | RDET10 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 4.3400 |
| Series | WaveMill |
| Shank Length (Decimal Inch) | 2.2800 |
| Functional Length (Decimal Inch) | 4.3400 |
| Head Length (Decimal Inch) | 2.0600 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 2 |
| Country of Origin | Japan |
| MSC Number | MSC# 44700284 |
