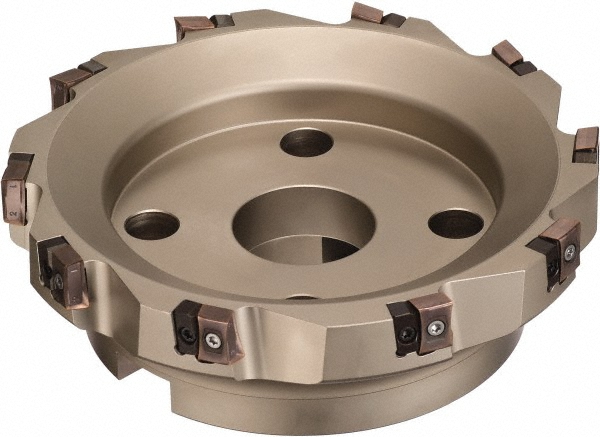

Takes (10) RDET12 Inserts, 0.2362" Max Depth
| Cutting Diameter (Decimal Inch) | 3.9370 |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | RDET12 |
| Cutter Style | RSXF |
| Insert Holding Method | Screw |
| Series | RSX |
| Hub Diameter (mm) | 70.00 |
| Counterbore Diameter (mm) | 32.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width | 14.4 |
| Overall Height (Decimal Inch) | 63.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Number Of Cutter Inserts | 10 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
| MSC Number | MSC# 65535817 |
