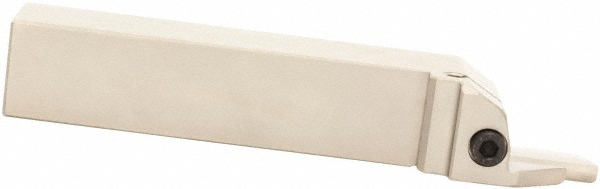

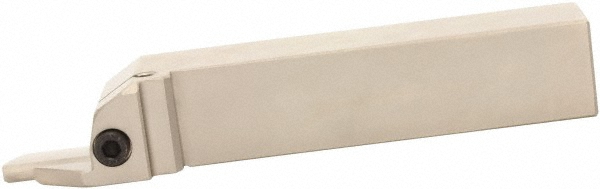

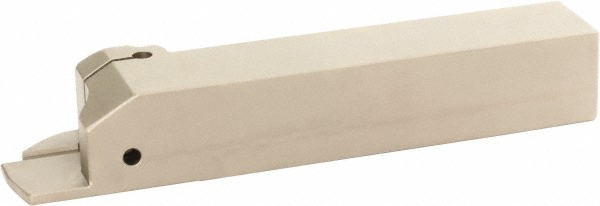

17.78 mm Max Depth of Cut, 1 x 1" Shank, Uses GCML, GCMN, GCMR Inserts
| Insert Seat Size | 3 |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7000 |
| Maximum Depth of Cut (mm) | 17.78 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | GNDF |
| Insert Holding Method | Screw |

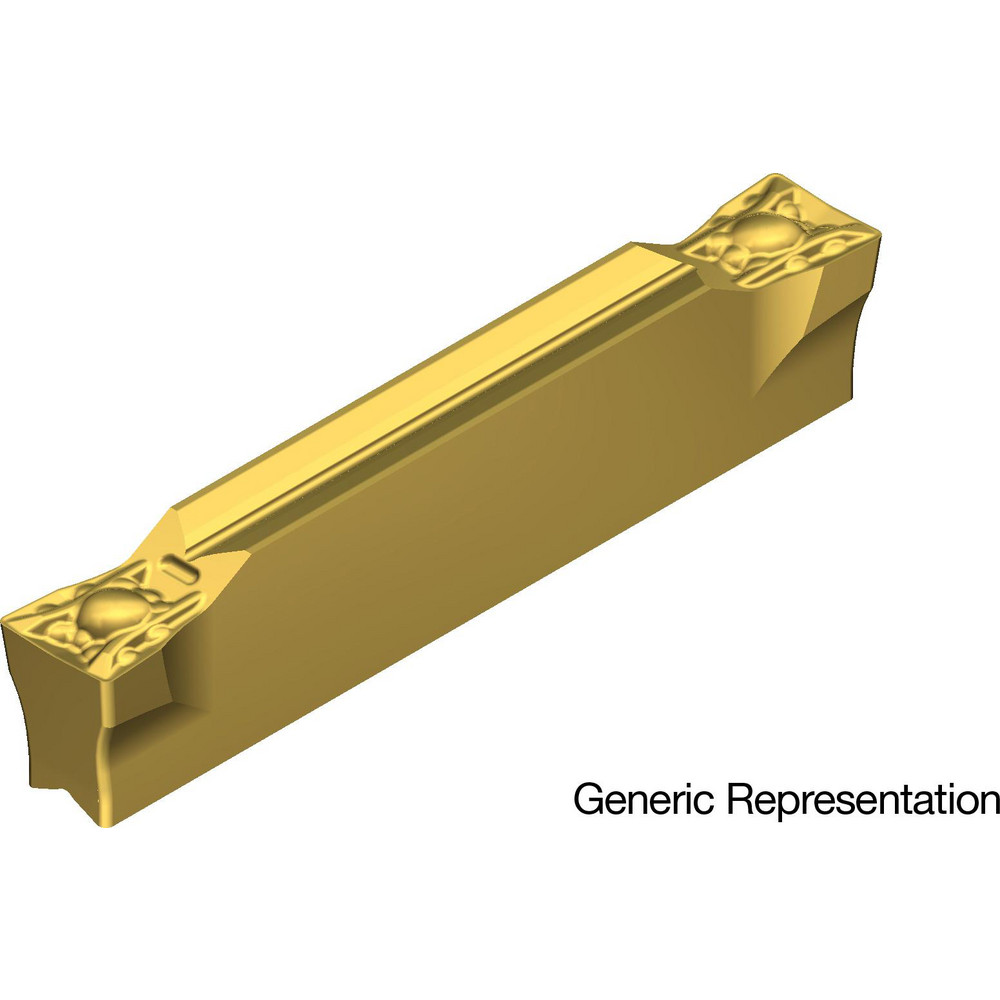

| Insert Compatibility | GCMR; GCML; GCMN |
| Compatible Insert Size Code | GCMR; GCML; GCMN |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | GND |
| Shank Length (Decimal Inch) | 4.3620 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9370 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.638 |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 90.00 |
| Minimum Axial Groove Inside Diameter(mm) | 65.00 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 36173854 |
