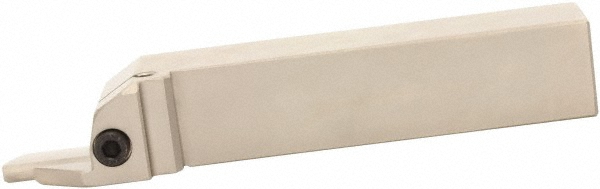

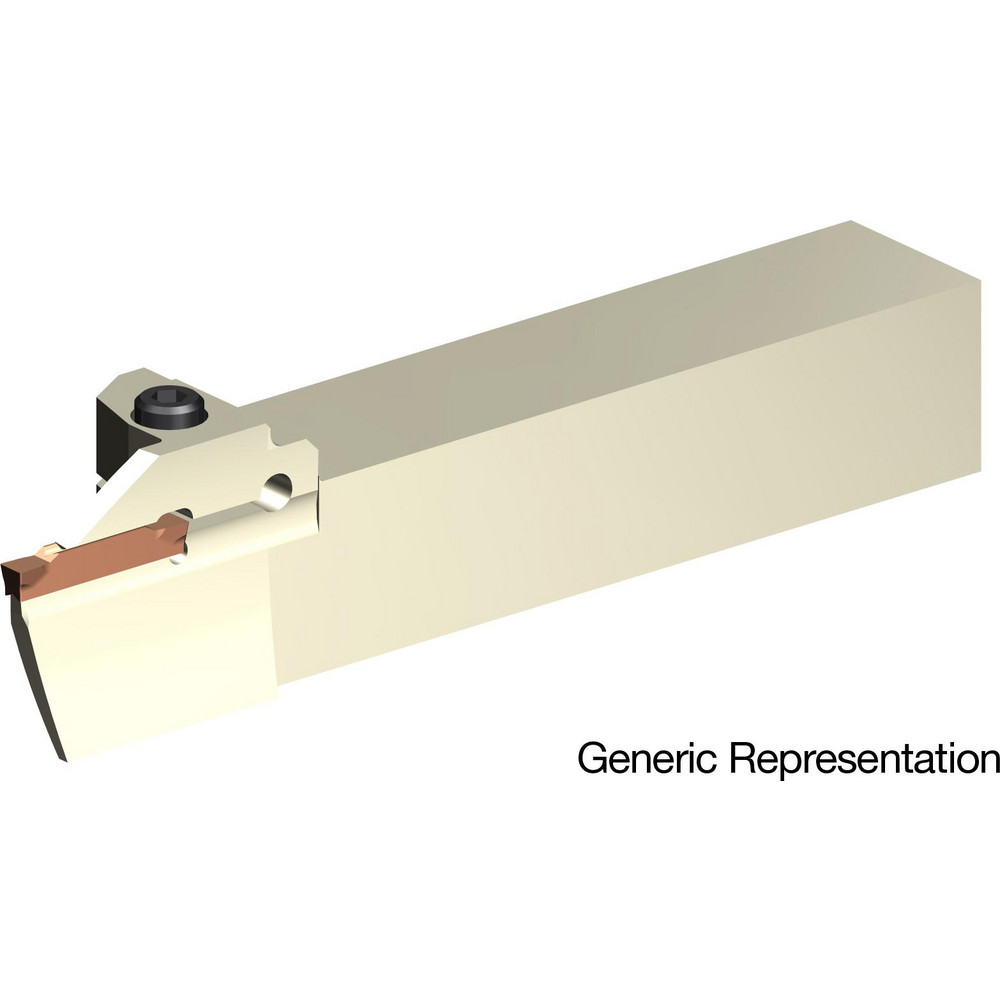

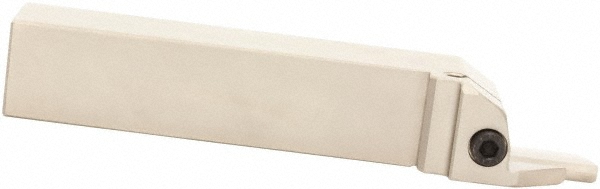

22.86 mm Max Depth of Cut, 1 x 1" Shank, Uses GCML, GCMN, GCMR Inserts
| Insert Seat Size | 4 |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9000 |
| Maximum Depth of Cut (mm) | 22.86 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | GNDF |
| Insert Holding Method | Screw |
| Insert Compatibility | GCMR; GCML; GCMN |
| Compatible Insert Size Code | GCMR; GCML; GCMN |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | GND |
| Shank Length (Decimal Inch) | 4.1650 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 2.7560 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.835 |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 70.00 |
| Minimum Axial Groove Inside Diameter(mm) | 50.00 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 36173821 |
